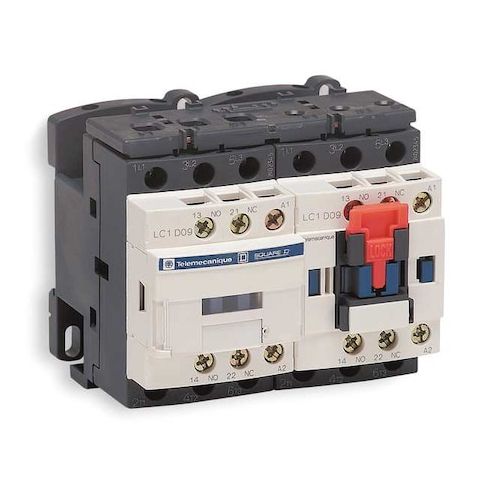

IEC Magnetic Contactor, 1NC/1NO, 120V AC, 3 P, Reversing, Screw Clamp MPN:LC2D25G7V
Free Shipping
In Stock
The Schneider IEC Magnetic Contactor is a versatile and reliable solution for power circuit switching in various applications. Designed for use in industrial settings, it offers a reversing action with 3 poles, making it ideal for motor control and other power circuit applications. Its compact design and screw clamp terminals provide easy installation and maintenance. With a maximum voltage rating of 690V AC and a rated making capacity of 450A, it can handle demanding tasks with ease. Suitable for use in a range of industries, including manufacturing, oil and gas, and food processing, this contactor is a reliable choice for power circuit control.
Top product features:
- Operates with a 120 V AC coil
- Includes auxiliary contacts as specified
- Preassembled with a reversing power busbar
Top product applications:
- Power distribution systems
- Control circuits
- Industrial control systems
The IEC Magnetic Contactor is a 3-pole reversing contactor in the TeSys Deca lineup, rated for switching power circuits within specified load types. It operates with a 120 V AC coil
- includes auxiliary contacts as specified. The device conforms to IEC standards applicable to this product category, uses screw clamp terminals, and is rated IP20 for enclosure protection level. It mounts on DIN rail or plate and includes a protective cover
- it does not include an integrated surge suppression device and is preassembled with a reversing power busbar. It is rated for operation up to 690 V AC within specified conditions and is rated for use at frequencies of 50/60 Hz within specified parameters. Overall dimensions are width 3.54 in, height 3.35 in, and depth 3.62 in, with a net weight of 0.787 kg.
- Action: Reversing
- - Poles: 3
- - Auxiliary contacts: 2 (1NO/1NC)
- - Coil voltage: 120 V AC
- - Maximum voltage rating: Rated for operation up to 690 V AC within specified conditions
- - Series/contactor style: TeSys Deca, IEC
- - Frequency: Rated for use at frequencies of 50/60 Hz within specified parameters
- - Enclosure: IP20 rated for enclosure protection level
- - Mounting: DIN Rail, Plate
- - Electrical connection: Screw Clamp Terminals
- - Includes protective cover: Yes
- - Embedded surge suppressor: No
- - Features: Without Built-In Suppressor Module
- Preassembled with Reversing Power Busbar
- - Rated making capacity: 450 A @ 440 V (Power Circuit)
- 140 A (AC Signalling)
- 250 A (DC Signalling)
- - Full load currents: 25 A inductive
- 40 A resistive
- - Net weight: 0.787 kg
- - Interlocks included: Electrical Interlock, Mechanical Interlock
Additional Information
- Country of Origin: KR
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 4.60
- Package Width: 4.50
- Package Height: 5.40
- Package Weight: 2.10
