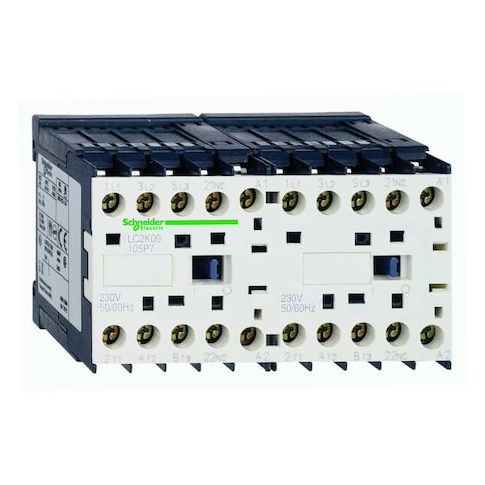

IEC Miniature Magnetic Contactor, 1NC, 240V AC, 3 P, Reversing, Screw Clamp MPN:LC2K0901U7
Free Shipping
In Stock
The IEC Miniature Magnetic Contactor from Schneider is a reliable and compact solution for motor control and resistive load applications. Its 3-pole, reversing design allows for easy switching of loads while its electromagnetic coil ensures smooth operation. Suitable for space-conscious installations with DIN-rail or plate mounting, this contactor features screw clamp terminals and a robust design with high electrical and mechanical durability. With a maximum voltage rating of 690 V AC and a rated making capacity of 110 A, it's ideal for a wide range of applications, including industrial control systems and commercial equipment.
Top product features:
- Reversing capability allows for bidirectional control of connected loads.
- Screw clamp terminals enable easy and secure electrical connections.
- Main contacts are rated for 110 A making capacity, suitable for high-current applications.
Top product applications:
- Motor Control
- Resistive Load
- DIN Rail or Plate Mounting
The IEC Miniature Magnetic Contactor is a TeSys K 3-pole, reversing, coil-operated switch (240 V AC) rated for operation within specified load types and conditions. It uses an electromagnetic coil to open or close its main contacts and is suitable for space-conscious installations with DIN-rail or plate mounting and screw clamp terminals.
- Action: Reversing
- - Application: Motor Control, Resistive Load
- - Coil Voltage: 240 V AC
- - Coil Volts: 240 V AC
- - Contactor Style: IEC
- - Frame / Series: TeSys K
- - Number of Poles: 3
- - Main Contacts: 3 normally open
- - Auxiliary Contacts: 1
- - Includes Auxiliary Contacts: Yes
- - Auxiliary Contact Configuration / Form: 1NC
- - Electrical Connection: Screw Clamp Terminals
- - Enclosure: No Enclosure
- IP20
- - Maximum Voltage Rating: 690 V AC
- - Rated Making Capacity: 110 A
- - Rated Short-Time Withstand Current: multiple values (e.g., 90 A/1 s to 110 A/100 ms in various circuits)
- - Impulse Withstand Voltage: 8 kV
- - Standards: BS 5424, CSA, IEC 60947, NF C 63-110, UKCA, UL Listed, VDE 0660
- - Fire Rating: UL 94 V1, NF F 16-101, NF F 16-102
- - Mounting Style: DIN Rail, Plate
- - Mounts On: Plate, Rail
- - Net Weight: 0.39 kg
- - Width / Height / Depth (Overall): 3.54 in (Width), 2.28 in (Overall Height), 2.24 in (Overall Depth)
- - Frequency: 50/60 Hz
- - Full Load Amps – Inductive: 9 A
- - Full Load Amps – Resistive: 20 A
- - Electrical Operating Durability: 1,300,000 cycles (Power Circuit)
- 180,000 cycles (Signalling Circuit)
- - Mechanical Durability: 5 Mcycles
- - Maximum Operating Temperature: 122 °F
- - Minimum Operating Temperature: -13 °F
- - Reversing: Yes
- - Reversing Capability: Reversing
- - Signalling Circuit: 5 mA switching current
- 17 V switching voltage
- - Control Circuit Voltage Limits: Operational 0.85 to 1.1 Uc (50 °C)
- Drop-Out 0.2 to 0.75 Uc (50 °C)
- - Fuse Amps: 25 A (Power Circuit), 10 A (Signalling Circuit)
- - Inrush VA: 30 VA
- - Power Loss: 1.3 W
