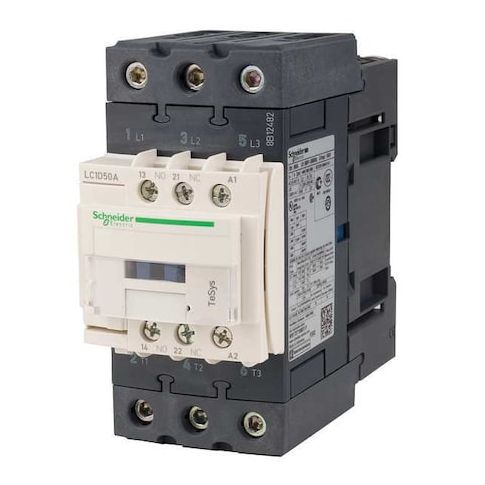

IEC Magnetic Contactor, 1NC/1NO, 24V AC, 3 P, Non-Reversing, Screw Clamp MPN:LC1D50AB7
Free Shipping
In Stock
The Schneider Electric IEC Magnetic Contactor is a reliable and efficient solution for motor control and resistive load applications. Its non-reversing design ensures secure and consistent operation, while its 24V AC coil voltage and 3-pole configuration make it suitable for a wide range of industrial settings. With its screw clamp terminals and mechanical durability up to 6 Mcycles, this contactor is designed for prolonged use and can withstand exposure to damp heat. Ideal for applications such as HVAC, conveyor systems, and industrial automation, this contactor provides efficient operation and protection against overcurrents, making it a valuable addition to any industrial control system.
Top product features:
- Average impedance of 1.5 mOhm, which contributes towards efficient operation.
- Mechanical durability up to 6 Mcycles, intended for prolonged use depending on usage conditions.
- Rated insulation voltage: Power circuit at 600 V CSA, and Signalling circuit at 690 V IEC, designed with an insulation voltage rating that suggests resistance to specified high voltages.
Top product applications:
- Motor control applications
- Resistive load applications
- Applications requiring a non-reversing, three-pole contactor
The SCHNEIDER ELECTRIC - IEC Magnetic Contactor is a non-reversing, three-pole contactor intended for use in motor control and resistive load applications. It operates with a coil voltage of 24V AC and has an auxiliary contact configuration of 1NO/1NC. The contactor features screw clamp terminals for secure electrical connections and is designed to operate under certain climatic conditions, including exposure to damp heat. With its compatibility code LC1D, this product is built with the aim of providing consistent performance in industrial settings.
Key features include:
- - Average impedance of 1.5 mOhm, which is expected to contribute towards efficient operation.
- - Associated fuse rating includes 10 A gG for signalling circuit conforming to IEC 60947-5-1
- aimed at offering protection against overcurrents.
- - Mechanical durability up to 6 Mcycles, intended for prolonged use depending on usage conditions.
- - Can be used within a range of working environments based on its maximum operating temperature specification of up to 140 Degrees F.
- - Rated insulation voltage: Power circuit at 600 V CSA
- Signalling circuit at 690 V IEC
- designed with an insulation voltage rating that suggests resistance to specified high voltages.
- -DIN Rail or Plate mounting style options provide flexibility during installation.
- - Product certifications from DNV, LROS (Lloyds register of shipping), CCC, GOST, BV, RINA, CSA and UL are indicative of efforts towards global standard compliance.
Additional Information
- Country of Origin: ID
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 6.00
- Package Width: 5.40
- Package Height: 2.50
- Package Weight: 2.10
