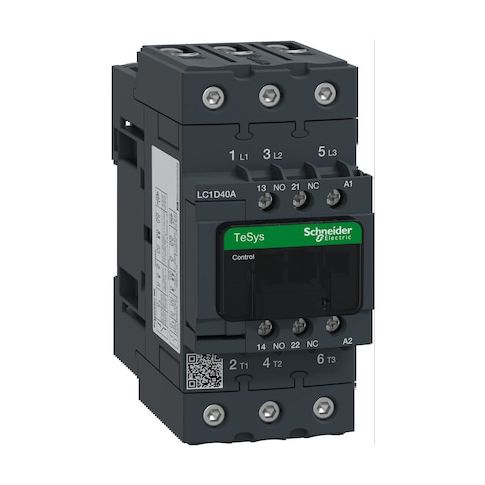

IEC Magnetic Contactor, 1NC/1NO, 120V AC, 3 P, Non-Reversing, Screw Clamp MPN:LC1D40AG7
Free Shipping
In Stock
The Schneider Electric IEC Magnetic Contactor is a versatile and reliable switching device designed for motor control and resistive load applications. With its 3-pole non-reversing design and 120V AC coil, it provides efficient control of motors and other loads. The contactor features 3 normally open main contacts and 2 auxiliary contacts, making it suitable for a variety of applications, including three-phase systems. Its compact design and screw clamp terminals make it easy to integrate into existing systems, while its durable construction ensures long-term reliability and performance. Perfect for use in industrial settings, the IEC Magnetic Contactor is a reliable choice for motor control and load management.
Top product features:
- The Schneider Electric IEC Magnetic Contactor is an electrically operated switching device that uses a 120 V AC coil to energize the main and auxiliary contacts, enabling control of motors and other loads.
- It features 3 normally open main contacts that allow for the control of motors and other loads in a three-phase system.
- The contactor has screw clamp terminals for wiring, providing a secure and reliable electrical connection.
Top product applications:
- Motor Control
- Resistive Load
- Three-Phase Systems
The Schneider Electric IEC Magnetic Contactor is an electrically operated switching device rated for use in applications compliant with IEC standards. This 3-pole, non-reversing contactor uses a 120 V AC coil to energize the main and auxiliary contacts, enabling control of motors and other loads. It features 3 normally open main contacts and 2 auxiliary contacts (1NO/1NC), with screw clamp terminals for wiring. The unit is part of the TeSys Deca family, ships with Everlink power connections and a protective cover, and has no enclosure (IP20). Rated for operation within the specified voltage ranges, it is suitable for 50/60 Hz applications and is designed for three-phase systems.
- Action: Non-Reversing
- - Application: Motor Control, Resistive Load
- - Coil Voltage: 120 V AC
- - Poles / Main Contacts: 3 poles
- 3 normally open
- - Auxiliary Contacts: 2 (1NO/1NC)
- Configuration: 1NO/1NC
- - Electrical Connection: Screw Clamp Terminals
- - Frame/Series: TeSys (TeSys Deca)
- Contactor Style: IEC
- - Phase / Frequency: Three
- 50/60 Hz
- - Rated Voltage: 690 V AC, 300 V DC
- Overvoltage Category: CAT III
- - Enclosure: IP20
- Enclosure type: No Enclosure
- - Included/Accessories: Everlink Power Connections
- Protective Cover
- Includes Auxiliary Contacts
- - Durability: Mechanical 6 Mcycles
- Electrical 1.4–1.5 Mcycles
- - Load/Current Ratings: Full Load Amps (Inductive 40 A
- Resistive 60 A)
- - HP Ratings: 3 hp @ 120 V
- 5 hp @ 230/240 V
- 10 hp @ 208/240 V (3‑phase)
- 30 hp @ 480/575 V (3‑phase)
- - Weight/Dimensions: Net Weight 0.85 kg
- Height 4.8 in
- Width 2.17 in
- Overall Depth 4.72 in
- - Other electrical specs: Inrush 140 VA
- Hold 13 VA
- Impedance 1.5 mΩ
- Switching Voltage 17 V (Signalling Circuit)
Additional Information
- Country of Origin: ID
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 5.90
- Package Width: 5.40
- Package Height: 2.50
- Package Weight: 2.10
