DIN Rail & Top Flange, Enclosed Power Relay, 30 A, 4 Pins, Screw MPN:725AXXSC3ML-120A
DIN Rail & Top Flange, Enclosed Power Relay, 30 A, 4 Pins, Screw

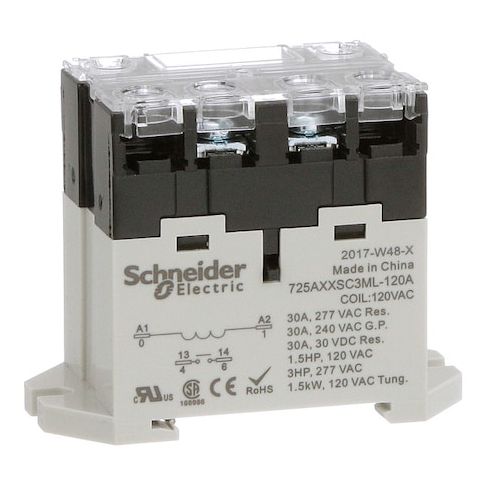

The Schneider Enclosed Power Relay is a reliable and efficient solution for industrial control applications. This 30A relay features a SPST-NO contact form and can handle up to 1.5 horsepower at 120V AC or 3 horsepower at 240V AC. With a compact design and DIN Rail mounting, it's perfect for use in control panels and automation systems. The relay's LED indicator and push-to-test button provide easy status monitoring and testing. Suitable for use in a variety of applications, including lighting control, motor control, and HVAC systems, this relay offers reliable and efficient switching in a compact and easy-to-install package.
Top product features:
- Enclosed design protects the relay's internal components from environmental factors
- SPST-NO contact form allows for single-pole, normally-open switching
- LED status indicator provides visual feedback on the relay's status
Top product applications:
- Motor Control Circuits
- Industrial Automation Systems
- High-Current Switching Applications
Enclosed Power Relay, Coil Voltage 120V AC, Contact Form SPST-NO, Current Rating 30 A, Electrical Connection Screw Terminal, Number of Pins 4, Status Indicator LED Indicator, Contact Rating (AC) 30 A @ 240/277V, Contact Rating (DC) 30 A @ 28/30V, Horsepower @ 120V AC 1 1/2 hp, Horsepower @ 240V AC 3 hp, Mounting Style DIN Rail & Top Flange, Push-To-Test Method Test Button, Body Depth 1.3 in, Body Height 1.3 in, Body Width 2.67 in, Coil Resistance 5,200 ohm, Contact Material Silver Alloy
Additional Information
- Country of Origin: CN
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 12.50
- Package Width: 5.80
- Package Height: 2.80
- Package Weight: 2.55
Product info last updated on January 13, 2026 1:40pm UTC
Category: Industrial Electrical Controls and Automation
