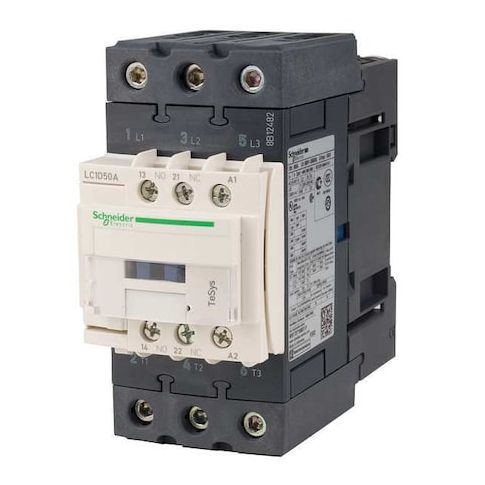

IEC Magnetic Contactor, 1NC/1NO, 24V DC, 3 P, Non-Reversing, Screw Clamp MPN:LC1D50ABD

• The IEC Magnetic Contactor from Schneider Electric is a TeSys Deca, 3-pole device with a 24 V DC coil. It is a non-reversing, electrically operated switch rated for operation within specified load types (motor control, resistive loads). It features 1NO/1NC auxiliary contacts (and a 1NC/1NO form), screw clamp terminals, and designed for use in environments compatible with IP20 ratings. The unit is suitable for DIN Rail and Plate mounting as per installation guidelines and is equipped with a surge suppression device rated according to specifications

• it includes protective covers and power connection features compliant with applicable standards.

  Key features

• - Action: Non-Reversing
• Application: Motor Control, Resistive Load
• - Coil Voltage: 24 V DC
• - Poles/Main Contacts: 3 poles
• 3 normally open main contacts
• - Auxiliary Contacts: 2 total (1NO/1NC)
• Auxiliary Contact Form: 1NC/1NO
• - Electrical connection: Screw Clamp Terminals
• - Mounting: DIN Rail, Plate
• Mounts On: Plate, Rail
• - Enclosure/IP: No Enclosure
• IP20
• Environmental: Mercury Free, PVC Free, Pollution Degree 3
• - Series/Frame: TeSys Deca
• Frequency: 50/60 Hz
• Phase: Three
• Max Voltage: 690V AC, 300V DC
• - Weight/Dimensions: Net weight 0.93 kg
• Height 4.8 in
• Width 2.17 in
• Overall Depth 4.72 in
• - Standards: EN 60947-4-1, EN 60947-5-1, UL 508, UL Listed, CSA (and other listed standards)
• - Other: Embedded Surge Suppressor: Yes
• Includes Protective Cover: Yes
• Includes Everlink Power Connections: Yes
