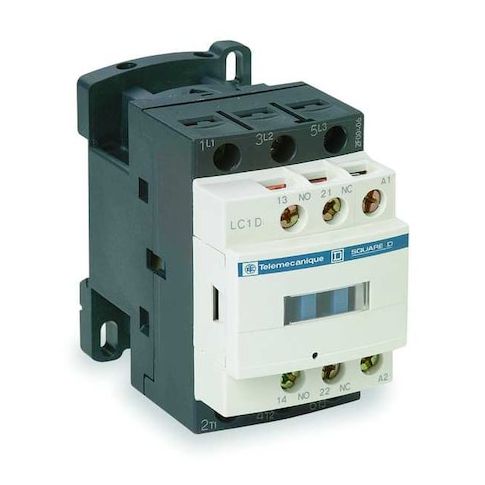

IEC Magnetic Contactor, 1NC/1NO, 208V AC, 3 P, Non-Reversing, Screw Clamp MPN:LC1D25LE7
Free Shipping
In Stock
The Schneider IEC Magnetic Contactor is a reliable and efficient switching device designed for use in protected environments. Its non-reversing, 3-pole configuration ensures smooth operation within specified load types and conditions, making it ideal for applications where precise control is crucial. With screw clamp terminals and a compact design, this contactor is easy to install and maintain, reducing downtime and increasing productivity. Suitable for use in a variety of industries, including manufacturing, HVAC, and power distribution, this contactor provides reliable switching and control, making it an essential component in many electrical systems.
Top product features:
- Three-pole, non-reversing switching device
- Two auxiliary contacts (1NO/1NC) for additional control and monitoring
- Screw clamp terminals for easy wiring and installation
Top product applications:
- Industrial Control Panels
- Factory Automation Systems
- Power Distribution Units (PDUs)
The IEC Magnetic Contactor is a 3-pole, non-reversing, IEC-style switching device rated for operation within specified load types and conditions. Compatible with 208 V AC supply within specified parameters. Equipped with screw clamp terminals suitable for wiring as per installation instructions. The unit includes two auxiliary contacts (1NO/1NC) and is part of the TeSys Deca family, does not include surge suppression features and does not include an enclosure
- suitable for use in protected environments only.
Key features:
- - Poles and contacts: 3 poles
- 3 normally open main contacts
- - Auxiliary contacts: 2 total (1NO/1NC)
- - Coil and frequency: 208 V AC coil
- 50/60 Hz
- - Reversing: Non-Reversing
- - Frame/series and style: TeSys Deca
- IEC
- - Mounting and terminals: DIN Rail, Plate mounting
- Screw Clamp terminals
- - Rated for operation at up to 690 V AC in three-phase systems under specified conditions
- - Load ratings: 25 A inductive, 40 A resistive
- - Enclosure and protection: Does not include an enclosure
- IP20
- includes protective cover
- - Physical specs: Net weight 0.37 kg
- dimensions approximately depth 3.62 in, height 3.35 in, width 1.77 in
- - Operating times: 12–22 ms (closing), 4–19 ms (opening)
Additional Information
- Country of Origin: FR
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 4.00
- Package Width: 3.50
- Package Height: 2.10
- Package Weight: 0.90
