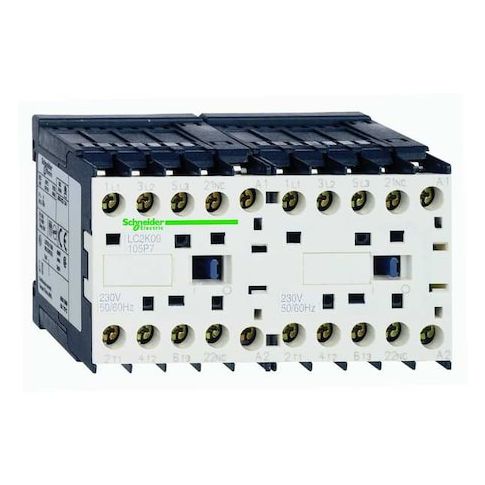

IEC Miniature Magnetic Contactor, 1NC, 240V AC, 3 P, Reversing, Screw Clamp MPN:LC2K0601U7
Free Shipping
In Stock
The IEC Miniature Magnetic Contactor is a compact, reliable solution for motor control applications. This 3-pole reversing contactor is designed to control motor-related loads in line with IEC standards, featuring a 240 V AC coil and screw clamp terminals. With a 1NC auxiliary contact, it provides flexible control options. Suitable for use in a variety of applications, including industrial automation, HVAC systems, and conveyor belt control, this contactor offers high reliability and durability. Its compact design and easy installation make it an ideal choice for space-constrained environments, ensuring efficient and safe motor control.
Top product features:
- Compact design for easy installation and reduced space requirements
- Reversing action allows for easy control of motor-related loads
- Screw clamp terminals provide secure and easy electrical connections
Top product applications:
- Motor Control
- Motor-related loads
- Reversing
The IEC Miniature Magnetic Contactor is a compact, electrically operated switching device used to control motor-related loads in line with IEC standards. It is a 3-pole reversing contactor with a 240 V AC coil and screw clamp terminals, featuring 1 normally closed auxiliary contact (1NC). It is part of the TeSys K series and has no enclosure, rated for operation within the specified voltage range of up to 690 V AC.
- Action: Reversing
- - Application: Motor Control
- - Coil Voltage: 240 V AC
- - Contactor Style: IEC
- - Series: TeSys K
- - Poles: 3
- - Auxiliary Contacts: 1 NC (Includes auxiliary contact)
- - Auxiliary Contact Configuration: 1NC
- - Electrical Connection: Screw Clamp Terminals
- - Rated Voltage: 690 V AC
- - IP Rating: IP20
- - Enclosure: No Enclosure
- - Mounting: DIN Rail, Plate
- - Dimensions (W x H x D): 3.54 in × 2.28 in × 2.24 in
- - Net Weight: 0.39 kg
- - Full Load Amps: Inductive 6 A
- Resistive 15 A
- - Rated Making Capacity: 110 A
- - Mechanical Durability: 5 Mcycles
- - Electrical Durability: 1.3 Mcycles
- - Frequency: 50/60 Hz
- - Operating Time: 10 to 20 ms
Additional Information
- Country of Origin: FR
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 3.70
- Package Width: 2.70
- Package Height: 2.30
- Package Weight: 0.80
