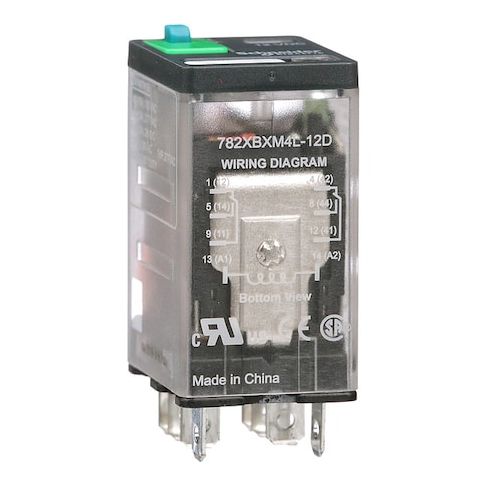

Socket, General Purpose Relay, Square, 15 A, 8 Pins, Faston Connector MPN:782XBXM4L-12D
Socket, General Purpose Relay, Square, 15 A, 8 Pins, Faston Connector
The Schneider General Purpose Relay is a versatile and reliable solution for a wide range of applications. With a square base shape and 8-pin Faston connector, this relay can be easily integrated into various systems. Its 15A current rating and 12V DC coil voltage make it suitable for use in industrial control panels, motor control circuits, and automation systems. The relay's DPDT contact form and LED status indicator provide clear feedback, while the mechanical flag ensures easy testing. Ideal for applications such as lighting control, HVAC, and machine control, this relay offers a high level of reliability and efficiency.
Top product features:
- Socket, General Purpose Relay, Square, 15 A, 8 Pins, Faston Connector
- Has a DPDT contact form for multiple switching options
- Has a built-in LED indicator and mechanical flag for status monitoring
Top product applications:
- Industrial Control Systems
- Automotive Electronics
- Robotics and Automation
General Purpose Relay, Base Shape Square, Coil Voltage 12V DC, Contact Form DPDT, Current Rating 15 A, Electrical Connection Faston Terminal, Flat Pin Width 0.187 in, Number of Pins 8, Status Indicator LED Indicator, Mechanical Flag, Contact Rating (AC) 10 A @ 151/277V, 15 A @ 120 to 277/120/150/250V (NO), 7.55 A @ 250V (NC), Contact Rating (DC) 15 A @ 28V (NO), 7.55 A @ 28V (NC), Horsepower @ 120V AC 1/2 hp, Horsepower @ 240V AC 1 hp, Mounting Style Socket, Push-To-Test Method Lockable
Additional Information
- Country of Origin: CN
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 3.50
- Package Width: 2.80
- Package Height: 1.00
- Package Weight: 0.10
Product info last updated on January 13, 2026 12:00pm UTC
Category: Industrial Electrical Controls and Automation
