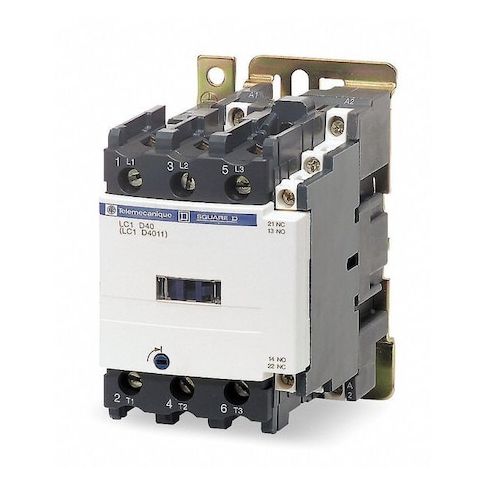

IEC Magnetic Contactor, 1NC/1NO, 200V AC, 3 P, Non-Reversing, Screw Clamp MPN:LC1D40AL7

• The Schneider Electric IEC Magnetic Contactor is a 3-pole, non-reversing electronic switching device in the TeSys Deca family. It is rated for use within IEC magnetic contactor specifications and features a 200 V AC coil, 1NO/1NC auxiliary contacts (2 total), and separate connection methods for control and power circuits (control: Screw Clamp Terminals

• power: EverLink BTR Screw Connectors). The unit conforms to IEC standards with an IP20 rating
• does not include an enclosure
• compatible with optional accessories.

  Key features

• - Poles: 3
• Action: Non-Reversing
• Reversing: No
• - Main contacts: 3 normally open (NO)
• - Auxiliary contacts: 2 total (1NO/1NC)
• - Coil voltage: 200 V AC
• - Rated voltage: 690 V AC / 300 V DC
• Frequency: 50/60 Hz
• - Series/Style: TeSys Deca
• Contactor Style: IEC
• - IP Rating: IP20
• Enclosure: No Enclosure
• Includes protective cover: Yes
• - Mounting: DIN Rail, Plate
• Mounts On: Plate, Rail
• - Connections: Control Circuit – Screw Clamp Terminals
• Power Circuit – EverLink BTR Screw Connectors
• - Weight: 0.85 kg
• - Standards: EN 60947-4-1, EN 60947-5-1, UL 508, UL Listed, CSA, CSA C22.2 No 14, CCC, IEC 60335-1, IEC 60947-4-1, IEC 60947-5-1
• - Dimensions (W x H x D): 2.17 in x 4.80 in x 4.72 in
• - Operating range: rated for operation within the temperature range of -40°F to 140°F
