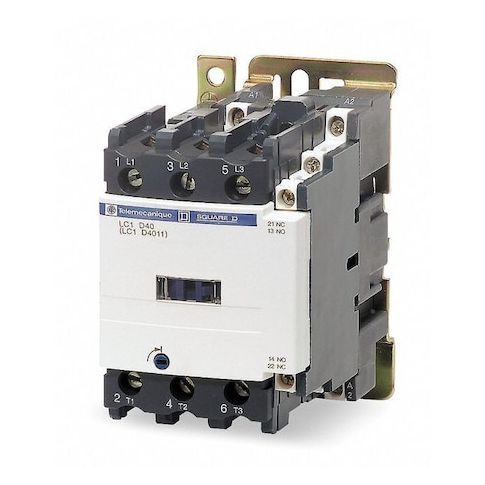

IEC Magnetic Contactor, 1NC/1NO, 24V DC, 3 P, Non-Reversing, Screw Clamp MPN:LC1D40ABD
Free Shipping
In Stock
The Schneider Electric IEC Magnetic Contactor is a reliable and efficient electrical switching device designed for motor control and resistive loads in industrial and commercial settings. With its 24V DC coil and 3-pole non-reversing configuration, it provides precise control and protection for your equipment. Its compact size and lightweight design make it easy to integrate into existing systems, while its IP20 rating ensures safe operation in harsh environments. Suitable for a wide range of applications, including HVAC, lighting, and conveyor systems, this contactor offers reliable performance, easy installation, and long-term durability, making it an ideal choice for professionals seeking a high-quality electrical solution.
Top product features:
- The Schneider Electric IEC Magnetic Contactor has 3 normally open main contacts.
- The unit features 1NO/1NC auxiliary contacts.
- The contactor has a surge suppression component integrated into its design.
Top product applications:
- Motor Control Systems
- Industrial Automation Systems
- Resistive Load Control Panels
The Schneider Electric IEC Magnetic Contactor is a 3-pole, non-reversing electrical switching device rated for operation with motor control and resistive loads within specified parameters. It features a 24 V DC coil, 1NO/1NC auxiliary contacts, and screw clamp terminals. The unit belongs to the TeSys Deca family and carries an IEC design. It has an IP20, No Enclosure rating, contains an integrated surge suppression component (note: does not guarantee protection), a protective cover, and Everlink power connections for wiring. Rated for operation within the specified electrical ratings and conditions.
Key features
- - Poles/Main contacts: 3 poles
- 3 normally open main contacts
- 2 auxiliary contacts (1NO/1NC)
- - Coil and control: Coil voltage 24 V DC
- configured as non-reversing (no implication of performance guarantee)
- - Frame/series and standards: Series TeSys Deca
- Contactor style IEC
- conforms to these standards
- compliance does not imply specific performance outcomes
- - Electrical ratings: Phase Three
- Frequency 50/60 Hz
- Rated for operation within the specified electrical ratings and conditions
- Overvoltage CAT III
- - Enclosure and protection: IP20
- No Enclosure
- equipped with a surge suppression feature (does not guarantee protection against all surges)
- Protective cover included
- - Connections: designed for electrical connections using specified terminals and connections
- no guarantee of compatibility beyond specifications
- - Physical size and weight: Width 2.17 in
- Depth 4.72 in
- Height 4.80 in
- Net weight 0.925 kg
- - Durability and duty: tested to cycle counts under standard test conditions (performance may vary in actual use)
- - Electrical ratings (current): rated current capacities based on standard testing conditions within specified load types
- Full Load Amps - Inductive 40 A
- Full Load Amps - Resistive 60 A
- Rated Making Capacity up to 800 A @ 440 V (Power Circuit)
- - Operating performance: typical switching times observed during testing under nominal conditions (not guaranteed in all applications)
- - Other ratings: Rated Short-Time Withstand Current includes values such as 320 A (40°C, 10 s) and 720 A (40°C, 1 s) for Power Circuit
- Signalling Circuit values also listed
- - Environmental and materials: Mercury Free, PVC Free, Pollution Degree 3
- Fire Resistant and Insulation Resistant
- - Reversing: No (Non-Reversing)
Additional Information
- Country of Origin: FR
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 6.00
- Package Width: 5.50
- Package Height: 2.50
- Package Weight: 2.22
