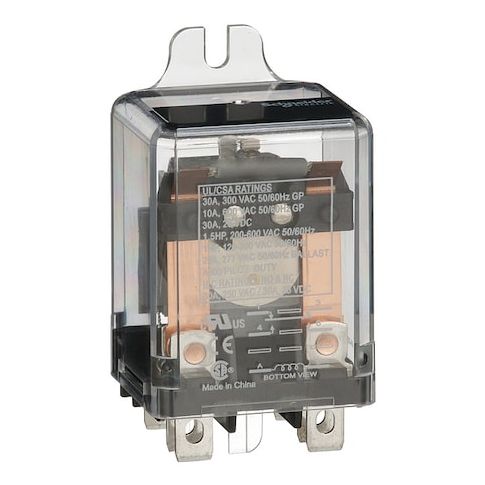

Flange Mount, Enclosed Power Relay, Square, 25 A, 5, Quick Connect MPN:389FXAXC1-24D
Flange Mount, Enclosed Power Relay, Square, 25 A, 5, Quick Connect
This enclosed power relay is a versatile solution for applications that require high current ratings and reliable switching. With a square base shape and flange mount design, it can be easily integrated into a wide range of industrial and commercial systems. The relay's SPDT contact form and 25 A current rating make it suitable for controlling high-power devices such as motors and pumps. Its compact size and mechanical flag status indicator also make it ideal for use in space-constrained applications, such as control panels and machine interfaces. It's a reliable and efficient solution for various industrial automation needs.
Top product features:
- Enclosed design protects internal components from environmental factors
- Quick Connect electrical connection allows for easy and secure wiring
- Mechanical flag status indicator provides visual confirmation of relay operation
Top product applications:
- Automotive applications due to its high current rating and compact size
- High-temperature applications such as HVAC systems or industrial processes
- Industrial control systems where a high-level of reliability is required
Enclosed Power Relay, Base Shape Square, Coil Voltage 24V DC, Contact Form SPDT, Current Rating 25 A, Electrical Connection Quick-Connect, Number of Pins 5, Status Indicator Mechanical Flag, Contact Rating (AC) 20 A @ 277V, 22 A @ 120V, 25 A @ 250/300V, 5 A @ 600V, Contact Rating (DC) 13 A @ 28V, 15 A @ 28V, Horsepower @ 120V AC 1 hp, Horsepower @ 240V AC 1 1/2 hp, Mounting Style Flange, Body Depth 1.4 in, Body Height 2.66 in, Body Width 1.4 in, Coil Resistance 400 ohm
Additional Information
- Country of Origin: CN
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 3.00
- Package Width: 1.50
- Package Height: 1.50
- Package Weight: 0.20
Product info last updated on January 13, 2026 12:05pm UTC
Category: Industrial Electrical Controls and Automation
