IEC Magnetic Contactor, 1NC/1NO, 120V AC, 3 P, Reversing, Screw Clamp MPN:LC2D18G7V
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G2464926

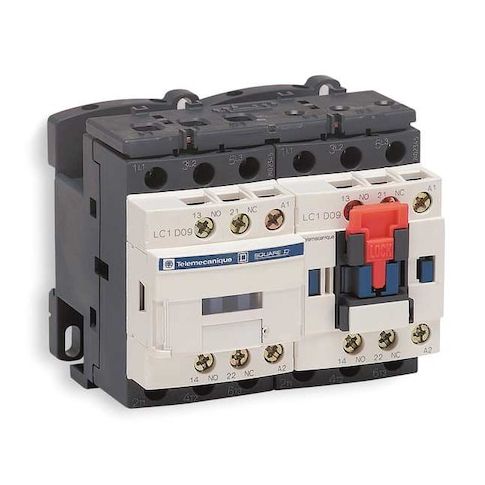

IEC Magnetic Contactor, 1NC/1NO, 120V AC, 3 P, Reversing, Screw Clamp
The TeSys Deca IEC Magnetic Contactor is a reliable and efficient solution for controlling three-phase AC motors. With a reversing capability and 18A full load current, it can handle a wide range of applications, including industrial automation and HVAC systems. Its compact design and screw clamp terminals make it easy to integrate into existing systems. The contactor's 5 horsepower rating at 240V AC makes it suitable for demanding applications, while its DIN rail and plate mounting options provide flexibility in installation. Ideal for use in manufacturing, material handling, and other industrial settings, this contactor ensures smooth and reliable motor control.
Top product features:
- Has 3 poles for 3-phase operation
- Has reversing capability to change the direction of the contactor's operation
- Has 2 auxiliary contacts for additional control or monitoring functions
Top product applications:
- Three-phase motor control
- Industrial automation systems
- Power distribution units
IEC Magnetic Contactor, Auxiliary Contact Form 1NO/1NC, NEMA Enclosure Rating No Enclosure, NEMA Size Not Applicable, Coil Voltage 120V AC, Number of Poles 3, Full Load Current - Inductive 18 A, Reversing Capability Reversing, Overall Height 3.03 in, Overall Width 3.54 in, Terminal Connection Type Screw Clamp Terminals, Mounting Style DIN Rail, Plate, Series TeSys Deca, Number of Auxillary Contacts 2, Contactor Style IEC, Horsepower @ Three Phase - 240V AC 5 hp
Additional Information
- Country of Origin: FR
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 4.60
- Package Width: 3.80
- Package Height: 5.40
- Package Weight: 1.80
Product info last updated on January 13, 2026 12:04pm UTC
Category: Industrial Electrical Controls and Automation
