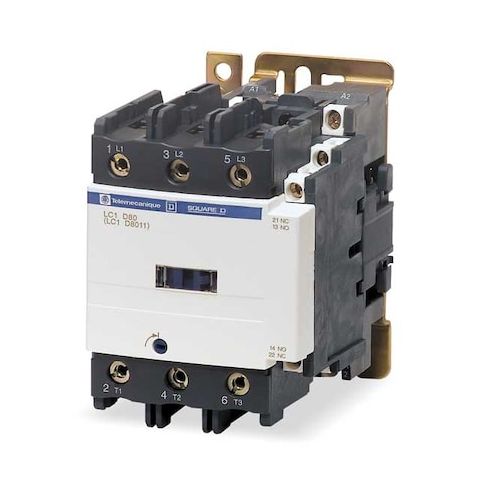

IEC Magnetic Contactor, 1NC/1NO, 240V AC, 3 P, Non-Reversing, Screw Clamp MPN:LC1D80U7
Free Shipping
In Stock
The Schneider Electric IEC Magnetic Contactor is a reliable and efficient electrical switch designed for a wide range of applications. Suitable for use with IEC-standard motor and resistive loads, this 3-pole, non-reversing contactor features 1 normally open and 1 normally closed auxiliary contact. With a robust IP20 enclosure rating and screw clamp terminals, it can withstand harsh environments and demanding operating conditions. Ideal for use in industrial control systems, machine automation, and power distribution, this contactor offers high durability, fast switching times, and low power consumption, making it a valuable addition to any electrical system.
Top product features:
- The Schneider Electric IEC Magnetic Contactor has 1 normally open and 1 normally closed auxiliary contact.
- The device features screw clamp terminals.
- The contactor is rated for operation with IEC-standard motor and resistive loads.
Top product applications:
- Motor control circuits
- Industrial control systems
- Power distribution systems
The Schneider Electric IEC Magnetic Contactor is a 3-pole, non-reversing electrical switch operated by a 240 V AC coil. It features 1 normally open and 1 normally closed auxiliary contact (2 total) and uses screw clamp terminals. The device is rated for operation with IEC-standard motor and resistive loads
- it has an IP20 enclosure rating and the TeSys series designation
- it can be mounted on DIN rail or plate. Main circuit ratings are specified as up to 690 V AC and 300 V DC
- rated for operation at frequencies of 50/60 Hz.
Key features
- - Contactor type and action: IEC Magnetic Contactor, 3 poles, Non-Reversing
- Auxiliary contacts: 1NO/1NC (2 total)
- - Coil and frequency: 240 V AC coil
- 50/60 Hz operation
- - Enclosure and mounting: IP20 enclosure rating
- Mounts on DIN rail or plate
- Terminals: Screw Clamp
- - Main contacts and ratings: 3 normally open main contacts
- Full Load Amps – Inductive: 80 A
- Full Load Amps – Resistive: 125 A
- - Voltage ratings: Rated voltage: 690 V AC, 300 V DC
- - Durability and cycles: Electrical durability is specified as up to approximately 1,500,000 or 800,000 cycles under test conditions
- Mechanical durability is approximately 4 million cycles
- - Time-related specs: Operating time – Closing: 20–35 ms
- Opening: 6–20 ms
- Non-overlap time: 1.5 ms
- - Inrush and hold: Inrush VA: 245 VA
- Hold VA: 26 VA
- - Standards and series: Frame/Series: TeSys
- Series: TeSys Deca
- Standards include EN 60947-4-1, EN 60947-5-1
- UL 508 listed
- IEC standards including IEC 60947-4-1 and IEC 60947-5-1
- - Protective features and limits: Equipped with a protective cover (note: does not imply safety certification)
- Rated for ambient temperatures up to approximately 60°C
- specific operational limits should be verified in detailed specifications. Shock and vibration ratings (e.g., 10 G closed, 8 G open
- 3 G closed, 2 G open)
- - Physical dimensions and weight: Overall depth 5.12 in, height 5 in, width 3.34 in
- Net weight 1.59 kg
Additional Information
- Country of Origin: CZ
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 3.70
- Package Width: 5.30
- Package Height: 5.40
- Package Weight: 3.41
