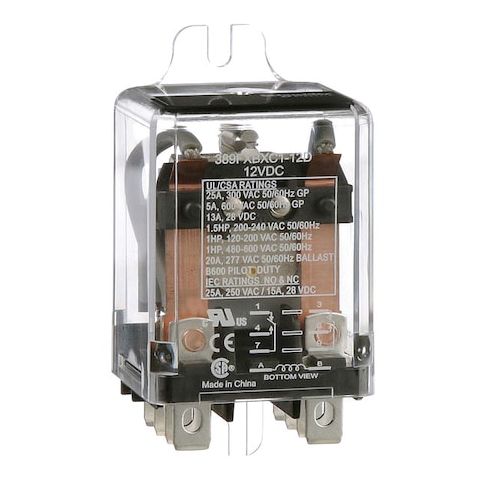

Flange Mount, Enclosed Power Relay, Octal, 25 A, 8 Pins, Quick Connect MPN:389FXBXC1-12D
Flange Mount, Enclosed Power Relay, Octal, 25 A, 8 Pins, Quick Connect
This Schneider Enclosed Power Relay is a reliable and efficient solution for a wide range of applications, including industrial automation, HVAC control, and power distribution systems. Its octal base shape and flange mounting style provide a secure and compact design, while its 25A current rating and 8-pin quick-connect electrical connection enable easy installation and wiring. The relay's DPDT contact form and mechanical flag status indicator ensure precise control and monitoring of electrical circuits. Suitable for use in harsh environments, this relay is ideal for applications requiring high reliability and durability, such as in manufacturing facilities, data centers, and commercial buildings.
Top product features:
- Enclosed design provides protection from environmental factors
- Quick-Connect electrical connection allows for easy installation and removal
- DPDT contact form enables switching of two independent circuits simultaneously
Top product applications:
- Industrial Automation Systems
- Motor Control Circuits
- Power Distribution Panels
Enclosed Power Relay, Base Shape Octal, Coil Voltage 12V DC, Contact Form DPDT, Current Rating 25 A, Electrical Connection Quick-Connect, Number of Pins 8, Status Indicator Mechanical Flag, Contact Rating (AC) 20 A @ 277V, 22 A @ 120V, 25 A @ 250/300V, 5 A @ 600V, Contact Rating (DC) 13 A @ 28V, 15 A @ 28V, Horsepower @ 120V AC 1 hp, Horsepower @ 240V AC 1 1/2 hp, Mounting Style Flange, Body Depth 1.07 in, Body Height 1.37 in, Body Width 0.83 in, Coil Resistance 100 ohm
Additional Information
- Country of Origin: CN
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 3.40
- Package Width: 2.80
- Package Height: 1.00
- Package Weight: 0.10
Product info last updated on January 13, 2026 12:34pm UTC
Category: Industrial Electrical Controls and Automation
