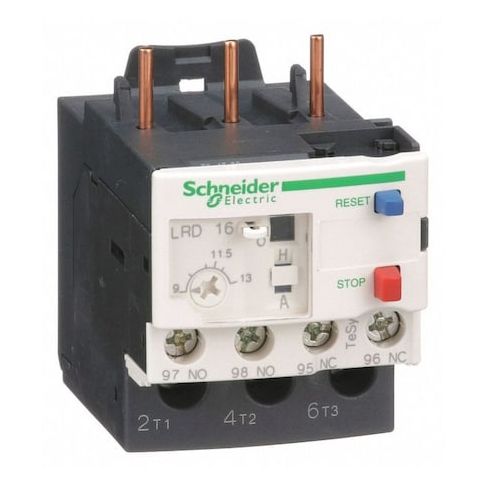

Overload Relay, 1NC/1NO, 9 A Min current, 13 A Max current, 690V AC MPN:LRD16
Free Shipping
In Stock
Protect your motor windings from damage with the TeSys LRD overload relay. Designed for use with TeSys D contactors, this relay detects overcurrents in the lines to the motor and disconnects power when an overcurrent is detected, minimizing damage. The adjustable trip current rating of 9 to 13 amperes allows for precise calibration to Class 10A standards. Ideal for use in a wide range of applications, including industrial and commercial settings, this relay meets multi-standards certifications, including IEC, UL, and ATEX. With its compact design and reliable performance, the TeSys LRD is a trusted solution for motor protection.
Top product features:
- Detects overcurrents in the lines to the motor to minimize damage to the motor windings.
- Disconnects power to the motor when an overcurrent is detected, working in conjunction with the TeSys D contactor.
- Has an adjustable trip current rating of 9 to 13 amperes, calibrated per Class 10A.
Top product applications:
- Motor starter for 9-38 amp TeSys D contactors
- Protection of motor windings from overcurrent damage
- Compliance with multiple international standards for safety and certification
TeSys LRD overload relays are designed to be used with TeSys D contactors to make a motor starter. This overload relay can be used with 9 amp through 38 amp TeSys D contactors. These differential thermal overload relays detect over currents in the lines to the motor. When an overcurrent is detected the overload relay working with the contactor will disconnect the power to the motor. This will minimize the damage to the motor windings. This overload relay has an adjustable trip current rating of 9 to 13 amperes. This trip current rating is calibrated per Class 10A. Multi standards certified (IEC, UL, CSA, CCC, EAC, ATEX, Marine).
Additional Information
- Country of Origin: FR
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 3.50
- Package Width: 3.10
- Package Height: 2.00
- Package Weight: 0.30
