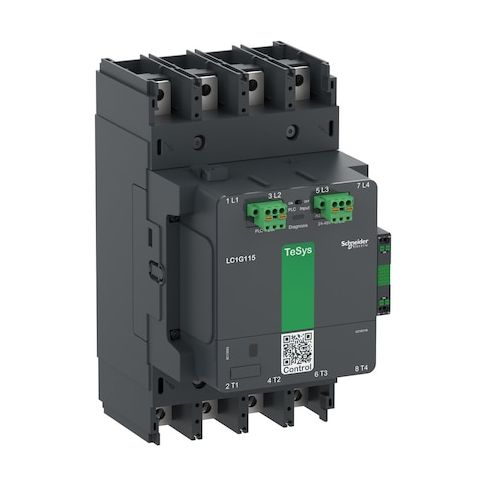

IEC Magnetic Contactor, 1NC/1NO, 48V-130V AC/DC, 4 P, Spring Type MPN:LC1G1154EHEA
Free Shipping
In Stock
The Schneider Electric IEC Magnetic Contactor is a reliable and efficient switching device designed for use in IEC-standard circuits. It features a 4-pole configuration, 1NC/1NO auxiliary contacts, and a wide coil voltage range of 48-130 V AC/DC. This device is ideal for controlling loads in various applications, including industrial automation, power distribution, and electrical panel building. Its robust design and high-frequency operation make it suitable for use in harsh environments, while its compact size and spring-type terminal connection facilitate easy installation and maintenance. The contactor is rated for continuous current and meets international standards for safety and performance.
Top product features:
- The Schneider Electric IEC Magnetic Contactor has two auxiliary contacts configured as 1NC/1NO, allowing for additional control and monitoring capabilities.
- The product is designed for use in IEC-standard circuits and is compatible with standard mounting configurations, making it easy to integrate into existing systems.
- The magnetic contactor features a spring-type terminal connection, allowing for secure and reliable connections to loads and control circuits.
Top product applications:
- Industrial Control Panels
- Power Distribution Units
- Motor Control Circuits
The Schneider Electric IEC Magnetic Contactor is a 4-pole, electrically operated switching device that opens and closes power contacts to control loads in IEC-standard circuits. It features two auxiliary contacts configured as 1NC/1NO and is rated for operation within the specified coil voltage range of 48–130 V AC/DC. Designed for use in IEC-standard circuits
- compatible with standard mounting configurations.
- Item: IEC Magnetic Contactor
- - Poles: 4
- - Auxiliary contacts: 2 (1NC/1NO)
- - Auxiliary Contact Form: 1NC/1NO
- - Coil voltage: 48–130 V AC/DC
- - Frequency: 50/60 Hz
- - Embedded Surge Suppressor: Does not include an integrated surge suppressor.
- - Maximum Voltage Rating: rated for voltages up to 1000V AC as specified by standards.
- - IP Rating: IP20
- - Maximum Operating Temperature: 140 Degrees F
- - Minimum Operating Temperature: -13 Degrees F
- - Mechanical Operating Durability: has a mechanical durability rating based on testing per applicable standards.
- - Mounting Style: Plate
- - Series: TeSys Giga
- - Standards: CSA C22.2 No 60947-4-1, EN/IEC 60947-4-1, EN/IEC 60947-5-1, JIS C8201-4-1, JIS C8201-5-1, UL 60947-4-1
- - Terminal Connection Type: Spring Type
- - Full Load Amps-Inductive: rated for continuous current at specified load conditions within standard ratings.
- - Full Load Amps-Resistive: rated for continuous current at specified load conditions within standard ratings.
- - Full Load Current - Inductive: 115 A
- - Full Load Current - Resistive: 250 A
- - Overall Depth: 7.6 in
- - Overall Height: 10.04 in
- - Overall Width: 5.63 in
- - Phase: Single
Additional Information
- Country of Origin: CN
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 63 days
- Minimum Order Quantity: 6
- Unit of Measure: EA
- Package Length: 15.16
- Package Width: 10.43
- Package Height: 9.84
- Package Weight: 14.04
