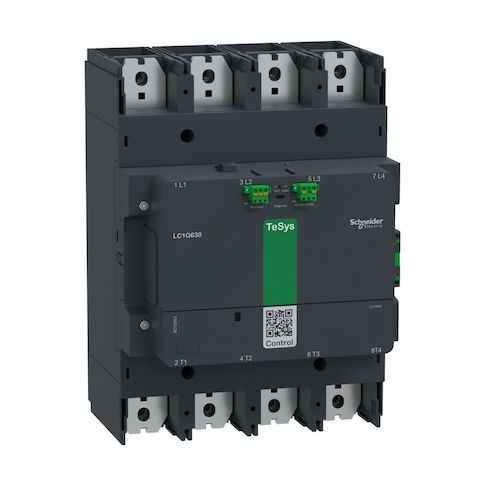

IEC Magnetic Contactor, 1NC/1NO, 48V-130V AC/DC, 4 P, Spring Type MPN:LC1G6304EHEA
Free Shipping
In Stock
The Schneider Electric IEC Magnetic Contactor is a reliable and efficient solution for controlling and protecting electrical circuits in a variety of applications. Suitable for use in single-phase systems, this 4-pole contactor features spring-type terminals and a compact design, making it easy to integrate into existing infrastructure. Its robust construction and high cycle rating ensure reliable operation, while its broad voltage range (48-130V AC/DC) and high maximum voltage rating (1000V AC) make it suitable for use in a wide range of industries, including industrial automation, commercial HVAC, and more. Ideal for applications where high reliability and efficiency are critical.
Top product features:
- The Schneider Electric IEC Magnetic Contactor has 2 auxiliary contacts, 1 normally closed (1NC) and 1 normally open (1NO), for controlling and monitoring the contactor's operation.
- It is a 4-pole, single-phase IEC-style magnetic switch for controlling AC/DC power in various applications.
- The contactor features spring-type terminals for easy and secure connection of wires.
Top product applications:
- Industrial Automation
- Automotive Systems
- Machine Tool and Equipment Control
The Schneider Electric IEC Magnetic Contactor is a 4-pole, single-phase IEC-style magnetic switch with 2 auxiliary contacts (1NC/1NO) and spring-type terminals. It is rated for operation within the specified voltage ranges.
Key features:
- - Coil voltage: 48–130 V AC/DC
- - Auxiliary contacts: 2 total (1NC/1NO)
- - Poles: 4
- Phase: Single
- Mounting: Plate
- - Contactor style/series: IEC
- Series: TeSys Giga
- - Embedded surge suppressor: No
- - Frequency: 50/60 Hz
- - Maximum voltage rating: 1000 V AC
- - IP rating: IP20
- - Mechanical durability: 5,000,000 cycles
- - Standards: CSA C22.2 No 60947-4-1, EN/IEC 60947-4-1, EN/IEC 60947-5-1, JIS C8201-4-1, JIS C8201-5-1, UL 60947-4-1
- - Terminal connection type: Spring Type
- - Includes auxiliary contacts: Yes
- - Overall dimensions: Depth 10.47 in
- Height 15.3 in
- Width 11.06 in
Additional Information
- Country of Origin: CN
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 10 days
- Minimum Order Quantity: 2
- Unit of Measure: EA
- Package Length: 19.88
- Package Width: 14.57
- Package Height: 13.39
- Package Weight: 58.42
