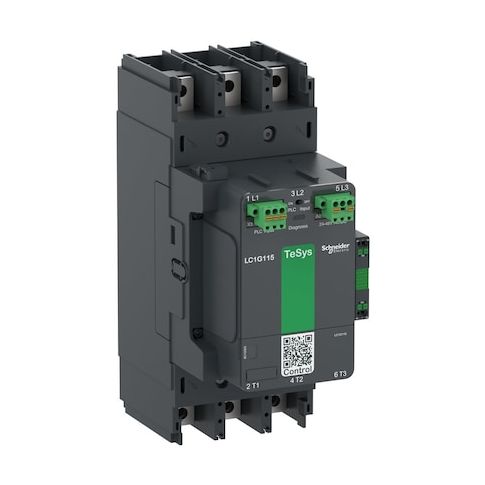

main product photo

IEC Magnetic Contactor, 1NC/1NO, 200V-500V AC/DC, 3 P, Spring Type MPN:LC1G115LSEA

Discount: See in Cart
Free Shipping
In Stock
Brand: Schneider
Part #: LC1G115LSEA
UPC: 3606481922427
SKU
510-G210190369
Regular Price $1,697.91 Special Price $1,212.79

BBB Accredited - ResellerRatings Elite Member - SBA Service-Disabled Veteran-Owned Certified

Add to Wish List Add to Compare
IEC Magnetic Contactor, 1NC/1NO, 200V-500V AC/DC, 3 P, Spring Type

The IEC Magnetic Contactor is a 3-pole, electrically operated switching device that uses an electromagnetic coil to open or close main power contacts, enabling control of motors, lighting, and other industrial loads. Rated for compliance with IEC standards, it features plate mounting and spring-type terminals, and includes two auxiliary contacts configured as 1NC/1NO. The coil operates from 200V-500V AC/DC, and the unit carries a maximum main circuit rating of 1000V AC, with an operating frequency of 50/60 Hz, intended for use in control panel applications within specified parameters.

- Item: IEC Magnetic Contactor

  • - Poles: 3
  • - Coil voltage: 200V-500V AC/DC
  • - Auxiliary contacts: 2 total (1NC/1NO)
  • - Includes auxiliary contacts: Yes
  • - Embedded surge suppressor: No
  • - Frequency: 50/60 Hz
  • - IP rating: IP20
  • - Maximum voltage rating: 1000V AC
  • - Mechanical operating durability: 8,000,000 cycles
  • - Maximum operating temperature: 140°F
  • - Minimum operating temperature: -13°F
  • - Mounting style: Plate
  • - Terminal connection type: Spring Type
  • - Phase: Single
  • - Series: TeSys Giga
  • - Standards: CSA C22.2 No 60947-4-1, EN/IEC 60947-4-1, EN/IEC 60947-5-1, JIS C8201-4-1, JIS C8201-5-1, UL 60947-4-1
  • - Overall dimensions: Depth 7.6 in, Height 10.04 in, Width 4.25 in


    • Additional Information

    • Country of Origin: CN
    • Drop Ship Item: No
    • Blind Ship Eligible: No
    • LTL Freight Required: No
    • Lead Time: Ships in 1 days
    • Minimum Order Quantity: 1
    • Unit of Measure: EA
    • Package Length: 15.16
    • Package Width: 9.06
    • Package Height: 9.92
    • Package Weight: 11.71
    Product info last updated on January 13, 2026 2:03pm UTC Category: Industrial Electrical Controls and Automation
