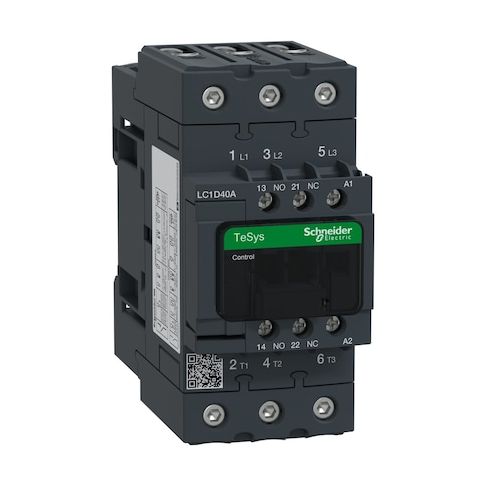

IEC Magnetic Contactor, 1NC/1NO, 24V AC, 3 P, Non-Reversing, Screw Clamp MPN:LC1D40AB6

• The Schneider Electric IEC Magnetic Contactor is a three-pole, non-reversing electromagnetic switch rated for use in IEC-standard control panels. Rated for operation with a 24V AC coil

• auxiliary contacts are configured as 1NC/1NO. The device uses screw clamp terminals and is part of the TeSys Deca series, rated for operation within the specified voltage range up to 690V AC
• conforms to IP20 ingress protection standards
• compatible with DIN rail or plate mounting methods within standard installation practices. It is specified for three-phase systems and mechanical durability up to 6,000,000 cycles
• electrical durability ratings up to 1,400,000 (AC-1), 1,500,000 (AC-3/AC-3e) cycles.

  - Coil Voltage: 24V AC

• - Contactor Style: IEC
• - Item: IEC Magnetic Contactor
• - Number of Poles: 3
• - Phase: Three
• - Reversing Capability: Non-Reversing
• - Auxiliary Contacts: 2 (1NC/1NO)
• - Includes Auxiliary Contacts: Yes
• - Terminal Connection Type: Screw Clamp
• - Voltage Rating: Up to 690V AC
• - Ingress Protection: IP20 (conforms to IP20 ingress protection standards)
• - Mounting: Compatible with DIN rail or plate mounting methods within standard installation practices
• - Mechanical Durability: Up to 6,000,000 cycles
• - Electrical Durability: Up to 1,400,000 (AC-1)
• 1,500,000 (AC-3/AC-3e) cycles
• - Frequency: 60 Hz
• - Full Load Amps - Inductive: 150 A
• - Full Load Amps - Resistive: 200 A
• - Full Load Current - Inductive: 40 A
• - Full Load Current - Resistive: 200 A
• - Horsepower (Single-Phase 120V AC): Rated horsepower at specified voltages and phases per manufacturer specifications
• - Horsepower (Single-Phase 240V AC): Rated horsepower at specified voltages and phases per manufacturer specifications
• - Horsepower (Three-Phase 208V AC): Rated horsepower at specified voltages and phases per manufacturer specifications
• - Horsepower (Three-Phase 240V AC): Rated horsepower at specified voltages and phases per manufacturer specifications
• - Horsepower (Three-Phase 480V AC): Rated horsepower at specified voltages and phases per manufacturer specifications
• - Horsepower (Three-Phase 600V AC): Rated horsepower at specified voltages and phases per manufacturer specifications
• - Overall Depth: 4.72 in
• - Overall Height: 4.8 in
• - Overall Width: 2.17 in
• - Series: TeSys Deca
• - Standards: CSA C22.2 No 14, EN 60947-4-1, EN 60947-5-1, IEC 60335-1, IEC 60947-4-1, IEC 60947-5-1, UL 508
• - Resistance Properties: Fire Resistant, Insulation Resistant
