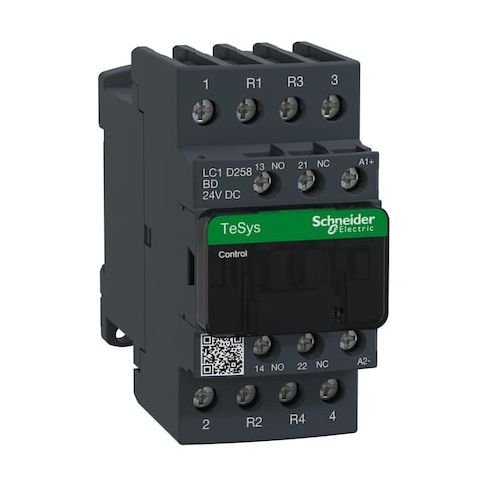

The Schneider IEC Magnetic Contactor is a reliable and efficient solution for a wide range of applications, including industrial control systems, motor control, and power distribution. With its 4-pole, non-reversing design and 24V DC coil, it provides precise control and switching capabilities. Suitable for use in resistive and inductive applications, it can handle high currents of up to 200A and 150A respectively. Its compact design and DIN Rail mounting make it ideal for space-constrained environments. This contactor is perfect for use in industries such as manufacturing, oil and gas, and water treatment, where reliable control is critical.
Top product features:
Four-pole operation allows for control of multiple circuits with a single device.
Non-reversing capability ensures that the contactor will only operate in one direction, preventing unintended circuit switching.
Screw clamp terminals provide secure and easy connections for wiring.
The IEC Magnetic Contactor is a four-pole, non-reversing, electrically operated switch rated for operation within specified electrical parameters. It operates with a 24V DC coil and includes auxiliary contacts as specified.
- Rated for use up to 690V AC within the specified conditions
- Frequency: 50 Hz
- Phase: Three
- IP rating: IP20
- Embedded surge suppressor: No
- Mechanical durability: tested for mechanical durability up to approximately 30 million cycles under standard testing conditions
- Electrical durability (AC-1): rated for electrical switching endurance of approximately 1.4 million cycles in accordance with applicable standards
- Rated for full load current of up to 150 A in inductive applications within specified parameters
- Rated for full load current of up to 40 A in inductive applications within specified parameters
- Rated for full load current of up to 200 A in resistive applications within specified parameters
- Auxiliary contacts included: Yes
- Series: TeSys Deca
- Standards: CSA C22.2 No 60947-4-1, CSA C22.2 No 60947-5-1, EN 60947-4-1, EN 60947-5-1, GB/T 14048.4, IEC 60947-4-1, IEC 60947-5-1, UL 60947-4-1, UL 60947-5-1
- Overall dimensions: Height 3.58 in, Width 1.77 in, Depth 4.21 in
- Resistance properties: Fire Resistant, Insulation Resistant
- Embedded note: Reversing capability is non-reversing
