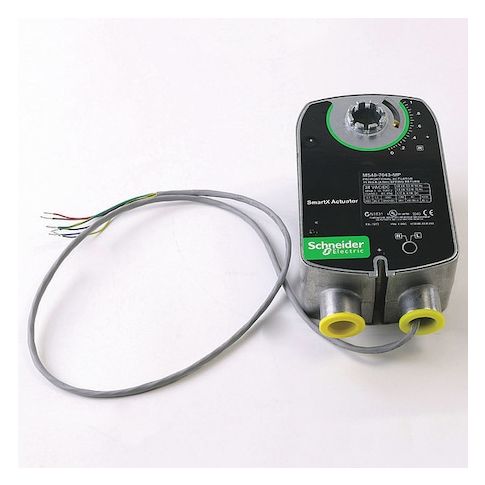

Electric Actuator, 24V, 6 to 9VDC, DCA MPN:MS40-7043-MP
Electric Actuator, 24V, 6 to 9VDC, DCA
The Schneider Electric Actuator is a reliable and efficient solution for controlling dampers and valves in various applications. With a rated torque of 150 lb-in and a spring return mechanism, this actuator provides consistent and precise control. Its proportional signal type allows for smooth and accurate operation, making it ideal for use in HVAC, industrial, and commercial settings. The actuator's compact design and NEMA rating of 2 ensure easy installation and durability in harsh environments. Its wide operating temperature range and long lead time make it a convenient choice for projects of all sizes.
Top product features:
- Proportional signal type allows for precise control over the actuator's movement.
- Rated torque of 150 lb-in enables the actuator to handle a wide range of applications.
- Spring return mechanism allows the actuator to automatically return to its original position.
Top product applications:
- Dampers
- Valves
- Valve and Damper
- Actuator, Valve Application Damper and Valve, Signal Type Proportional, Rated Torque 150 lb-in, Input Voltage 22 to 30V DC, 24V AC, Output Signal 20V DC, Electrical Connection Type Hardwired, NEMA Rating 2, IP Rating IP54, Spring Return Spring Return, Shaft Rotation CW/CCW, Stroke Degree 40 Degrees
- 95 Degrees , Mounting Type Direct Mount, Maximum Operating Temperature 140 Degrees F, Minimum Operating Temperature -22 Degrees F, Overall Width 4 in, Application Dampers, Valves
Additional Information
- Country of Origin: MX
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 2 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 10.80
- Package Width: 5.00
- Package Height: 4.70
- Package Weight: 3.90
Product info last updated on February 24, 2026 12:11am UTC
Category: HVACR and Appliance Controls
