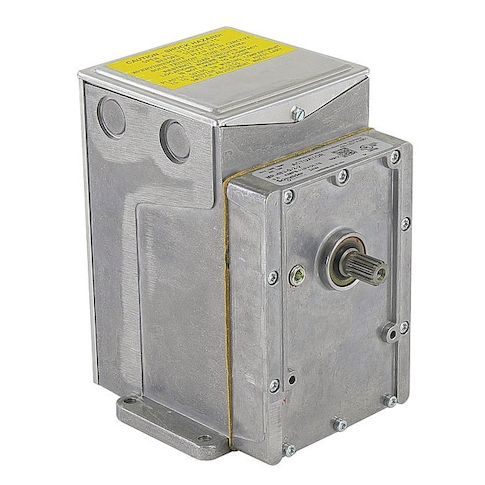

Electric Actuator, 120V, 65 sec., 220 lb-in MPN:MP-483
Electric Actuator, 120V, 65 sec., 220 lb-in
The Schneider Electric Actuator is a reliable and efficient solution for controlling HVAC systems, dampers, valves, and ventilation flaps. With its 220 lb-in rated torque and 120V input voltage, this actuator provides precise control and smooth operation. Its proportional signal type and spring return non-spring return features ensure consistent performance and easy installation. Suitable for a wide range of applications, including commercial and industrial settings, this actuator offers a reliable and cost-effective solution for controlling air flow and pressure. Its compact design and NEMA 4 rating make it ideal for harsh environments.
Top product features:
- Electric Actuator, 120V, 65 sec., 220 lb-in
- Has a time to close of 50 seconds
- Has a rated torque of 220 lb-in
Top product applications:
- HVAC Systems
- Dampers
- Valves
Actuator, Valve Application Damper and Valve, Signal Type Proportional, Rated Torque 220 lb-in, Input Voltage 120V, Contact Form SPDT, Electrical Connection Type Screw Terminals, NEMA Rating 4, Spring Return Non-Spring Return, Time to Close 50 sec, Stroke Degree 90 Degrees , Maximum Operating Temperature 136 Degrees F, Minimum Operating Temperature -40 Degrees F, Overall Width 5 3/8 in, Application HVAC Systems, Dampers, Valves, Ventilation Flaps
Additional Information
- Country of Origin: MX
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 10 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 1.00
- Package Width: 1.00
- Package Height: 1.00
- Package Weight: 11.10
Product info last updated on February 1, 2026 8:03am UTC
Category: HVACR and Appliance Controls
