Electric Actuator, 24V, Floating, 70 lb.-in MPN:MF41-6083
Electric Actuator, 24V, Floating, 70 lb.-in

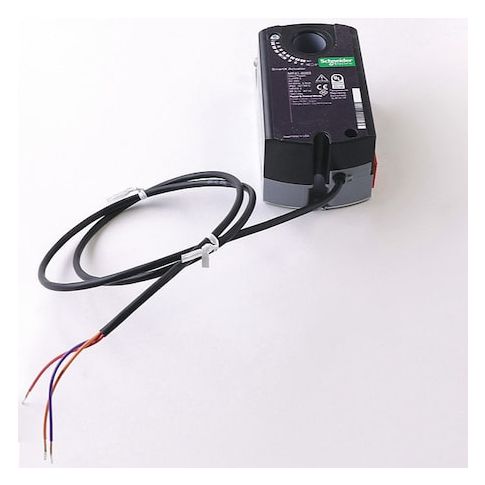

The Schneider Electric Actuator is a reliable and efficient solution for various applications, including valve and damper control. With its 24V AC input and 0-10V DC output, it can be easily integrated into existing systems. The actuator's floating design and spring return non-spring return options provide flexibility and reliability. Suitable for applications in harsh environments, it can operate in temperatures ranging from -25°F to 130°F. Its compact size and low weight make it ideal for direct mount installations. The actuator is perfect for use in industrial settings, such as HVAC, water treatment, and manufacturing facilities.
Top product features:
- Floating actuator design allows for precise control and flexibility in valve and damper applications.
- Rated torque of 88 lb-in enables the actuator to handle a wide range of loads and duties.
- Output signal range of 0 to 10V DC allows for analog control and integration with various control systems.
Top product applications:
- Valve Application
- Damper
- Dampers
- Actuator, Valve Application Damper, Rated Torque 88 lb-in, Input Voltage 24V AC, Output Signal 0 to 10V DC, Electrical Connection Type Hardwired, NEMA Rating 2, IP Rating IP54, Spring Return Non-Spring Return, Time to Close 108 sec, Shaft Rotation CW/CCW, Stroke Degree 90 Degrees
- 95 Degrees , Mounting Type Direct Mount, Maximum Operating Temperature 130 Degrees F, Minimum Operating Temperature -25 Degrees F, Weight 1.06 lb, Overall Width 2 3/4 in, Application Dampers
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 9.90
- Package Width: 6.10
- Package Height: 2.70
- Package Weight: 1.55
Product info last updated on January 27, 2026 7:44pm UTC
Category: HVACR and Appliance Controls
