Electric Actuator, 24V, 150 lb.-in. MPN:MS40-7173

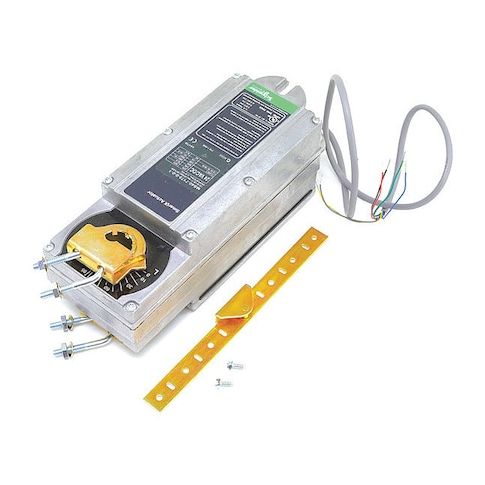

Electric Actuator, 24V, 150 lb.-in.
This 24V electric actuator from Schneider is a reliable solution for various applications, including valve operation, damper control, and signal transmission. Its proportional output signal allows for precise control, while its spring return feature ensures consistent operation even in the event of power loss. With a high torque rating of 545 lb-in, it can handle demanding tasks. Suitable for use in harsh environments, it features a NEMA 4 rating and IP56 protection. Ideal for industrial automation, HVAC, and process control systems, this actuator offers reliable and precise control, making it a valuable addition to any system.
Top product features:
- Spring Return
- Rated Torque 545 lb-in
- Shaft Rotation CW/CCW
Top product applications:
- Damper and Valve Control
- Valve Control
- Signal Type Proportional Control
Actuator, Valve Application Damper and Valve, Signal Type Proportional, Rated Torque 545 lb-in, Input Voltage 22 to 30V DC, 24V AC, Output Signal 2 to 10V DC, Electrical Connection Type Hardwired, NEMA Rating 4, IP Rating IP56, Spring Return Spring Return, Shaft Type 3/8 to 1/2 In. Round, Shaft Rotation CW/CCW, Mounting Type Direct Mount, Maximum Operating Temperature 140 Degrees F, Minimum Operating Temperature -25 Degrees F, Overall Width 4 in, For Shaft Diameter 1/2 in
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 6.40
- Package Width: 5.10
- Package Height: 14.10
- Package Weight: 9.80
Product info last updated on February 1, 2026 1:33am UTC
Category: HVACR and Appliance Controls
