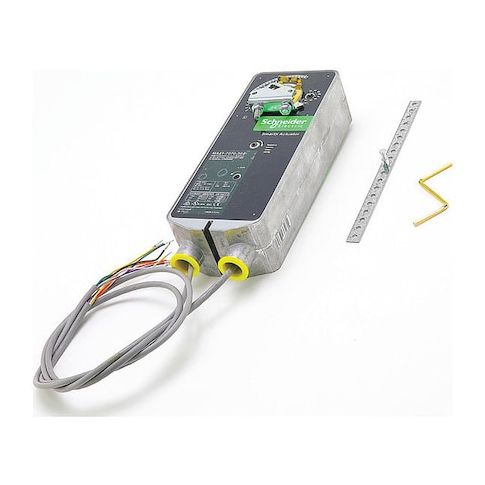

Electric Actuator, 120V, 60 lb.-in. MPN:MA41-7070-502
Electric Actuator, 120V, 60 lb.-in.
The Schneider Electric Actuator is a reliable and versatile solution for a wide range of applications, including valve control and damper operation. With a 60 lb-in rated torque and 2-10V DC output signal, this actuator can precisely control airflow, water flow, or other processes. Its spring return feature ensures consistent operation, even in the event of a power failure. Suitable for use in harsh environments, the actuator meets IP54 and NEMA 2 ratings. Ideal for HVAC, industrial, and commercial applications, the Schneider Electric Actuator is a reliable choice for any project requiring precise control and durability.
Top product features:
- Spring Return
- Output Signal 2 to 10V DC
- Damper Shaft with CW/CCW Shaft Rotation
Top product applications:
- HVAC Control System
- Automotive Cooling System
- Industrial Process Control Valve
Damper Actuator, Valve Application Valve, Rated Torque 60 lb-in, Input Voltage 120V AC, Output Signal 2 to 10V DC, Contact Form SPST, Electrical Connection Type Hardwired, NEMA Rating 2, IP Rating IP54, Spring Return Spring Return, Shaft Type Damper Shaft, Shaft Rotation CW/CCW, Stroke Degree 95 +/- 5 Degrees , Mounting Type Direct Mount, Maximum Operating Temperature 140 Degrees F, Minimum Operating Temperature 22 Degrees F, Overall Width 4 in, For Shaft Shape Round, Square
Additional Information
- Country of Origin: MX
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 2 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 1.00
- Package Width: 1.00
- Package Height: 1.00
- Package Weight: 7.00
Product info last updated on January 28, 2026 4:36pm UTC
Category: HVACR and Appliance Controls
