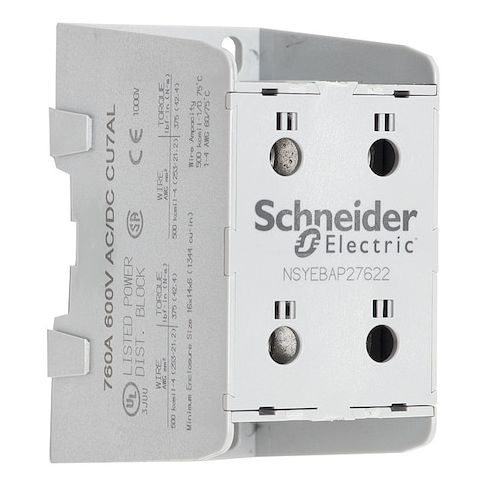

Power Distribution Block, Finger-Safe, 1 Pole, 760 A Copper, 600 V AC/DC, Panel, Screw MPN:NSYEBAP27622
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G205848831
Power Distribution Block, Finger-Safe, 1 Pole, 760 A Copper, 600 V AC/DC, Panel, Screw
The Schneider Power Distribution Block is a reliable and efficient solution for managing high-current power distribution in industrial and commercial settings. With a maximum current rating of 760 A and a voltage rating of 600 V AC/DC, it can handle demanding applications such as motor control, lighting, and HVAC systems. Its finger-safe design and surface-mounting capability make it easy to install and maintain. Suitable for use with copper and aluminum conductors, this block is ideal for use in panel-mounted applications, providing a secure and reliable connection for power distribution and management.
Top product features:
- Finger-safe design to prevent accidental contact with electrical components
- Supports line connections for 2 conductors up to 500 kcmil
- Supports load connections for 2 conductors up to 500 kcmil
Top product applications:
- Industrial electrical panel installations
- Commercial electrical distribution systems
- Heavy-duty electrical power distribution in industrial settings
Power Distribution Block, For Conductor Material Aluminum, Copper, Line Connections/Pole 2, Line Side Stud Size Not Applicable, For Line Copper Wire Size - Minimum 4 AWG, For Line Copper Wire Size - Maximum 500 kcmil, Load Connections/Pole 2, Load Side Stud Size Not Applicable, For Load Copper Wire Size - Minimum 4 AWG, For Load Copper Wire Size - Maximum 500 kcmil, Maximum Current - Copper Conductor 760 A, Maximum Voltage 600 V, Mounting Type Surface, Number of Poles 1, Overall Depth 3.35 in
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 9.00
- Package Width: 5.00
- Package Height: 3.00
- Package Weight: 1.00
Product info last updated on January 14, 2026 11:48pm UTC
Category: Electrical Connectors
