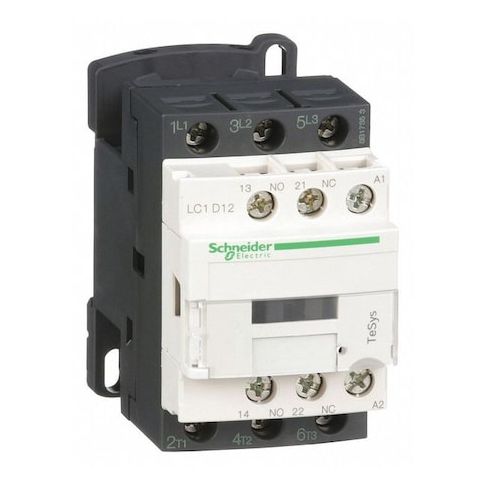

IEC Magnetic Contactor, 1NC/1NO, 240V AC, 3 P, Non-Reversing, Screw Clamp MPN:LC1D12U7
Free Shipping
In Stock
The Schneider Electric IEC Magnetic Contactor is a reliable and efficient solution for motor control and resistive loads. This 3-pole, non-reversing device features 1NO/1NC auxiliary contacts and a 240V AC coil, making it suitable for a wide range of applications. Its compact design and screw clamp terminals enable easy installation and connection. With a high durability rating of 2,000,000 electrical cycles and 15,000,000 mechanical cycles, this contactor is built to last. Ideal for use in industrial settings, it's also suitable for residential applications, such as HVAC and water treatment systems, providing a safe and reliable control solution.
Top product features:
- The Schneider Electric IEC Magnetic Contactor has 1NO/1NC auxiliary contacts for additional control and monitoring capabilities.
- It features a non-reversing action to prevent motor reversal and ensure safe operation.
- The device uses screw clamp terminals for easy and secure connections.
Top product applications:
- Motor control
- Resistive load control
- Industrial automation
The Schneider Electric IEC Magnetic Contactor is a 3-pole, non-reversing IEC-style device with 1NO/1NC auxiliary contacts and a 240 V AC coil. Rated for operation with motor control and resistive loads within specified parameters, it uses screw clamp terminals and is part of the TeSys Deca series. Enclosure/IP: No Enclosure
- IP20.
- Poles: 3
- - Action: Non-Reversing
- - Auxiliary contacts: 2 (1NO/1NC)
- - Coil voltage: 240 V AC
- - Main contacts: 3 NO
- - Connection: Screw Clamp Terminals
- - Maximum voltage: 690 V AC
- 300 V DC
- - Rated currents: 25 A resistive
- 12 A inductive
- - Mounting: DIN Rail, Plate
- - Enclosure/IP: No Enclosure
- IP20
- - Dimensions: 3.03 in (H) x 1.77 in (W) x 3.38 in (D)
- - Net weight: 0.325 kg
- - Durability: Electrical 2,000,000 cycles
- Mechanical 15 Mcycles
- - Includes protective cover: Yes
Additional Information
- Country of Origin: ID
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 3.70
- Package Width: 3.20
- Package Height: 2.20
- Package Weight: 0.80
