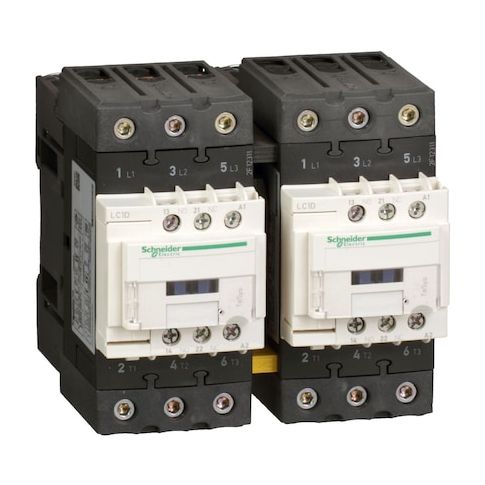

IEC Magnetic Contactor, 1NC/1NO, 24V AC, 3 P, Reversing, Screw Clamp MPN:LC2D50AB7
The Schneider IEC Magnetic Contactor is a reliable and efficient solution for motor control and resistive load applications. Its reversing design enables smooth operation and easy integration into various systems. With a wide range of features, including screw clamp terminals and high electrical durability, this contactor is suitable for use in a variety of industries, including manufacturing, healthcare, and more. Its compact design and IP20 rating make it an ideal choice for applications where space is limited. The contactor's high mechanical durability and fire resistance ensure a long and safe operational life.
Top product features:
- Operates at a coil voltage of 24V AC.
- Equipped with screw clamp terminals for both control circuit and power circuit.
- Suitable for motors with specific horsepower ratings based on phase and voltage levels utilized.
Top product applications:
- Motor control
- Resistive load applications
- Industrial automation
The SCHNEIDER ELECTRIC - IEC Magnetic Contactor is a reversing contactor, intended for use in motor control and resistive load applications. It operates with an ambient air temperature ranging from -40 to 60°C (up to 70°C with derating) and its storage temperature range is from -60 to 80°C. The device comes preassembled with a reversing power busbar and features auxiliary contacts that are mechanically linked. With an average impedance of 1.5 mOhm, it meets the requirements of IACS E10 and IEC 60947-1 Annex Q category D standards.
Key Features:
- - Coil Voltage: Operates at a coil voltage of 24V AC.
- - Connections-Terminals: Equipped with screw clamp terminals for both control circuit and power circuit.
- - Electrical Durability: Electrical durability rated at a maximum of 1.45 Mcycles at <=440 V.
- - Fire Resistance: Rated for temperatures up to a maximum of 850°C as per the IEC 60695-2-1 standard.
- - Full Load Currents: Rated for full load currents with a maximum limit of up-to: Inductive Loads:50A
- Resistive Loads:80A
- - Horsepower Ratings: Suitable for motors with specific horsepower ratings based on phase and voltage levels utilized.
- - IP Rating: Has an IP20 rating which indicates its degree of protection against touch by fingers or objects not greater than12mm, as well as its resistance towards harmful dust particles.
- - Mechanical Durability: Mechanical durability rated for a maximum of six million cycles.
Additional Information
- Country of Origin: FR
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 20 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 1.00
- Package Width: 1.00
- Package Height: 1.00
- Package Weight: 4.66
