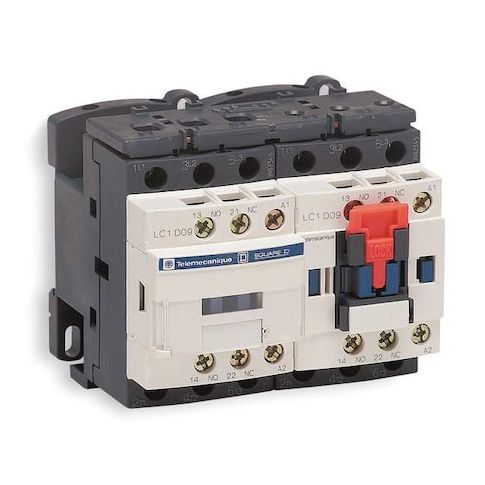

The Schneider Electric IEC Magnetic Contactor is a versatile and reliable solution for motor control and resistive load applications in various industrial settings. Its 24V AC coil voltage and screw clamp terminals provide easy electrical connection, while its frame from the TeSys series supports full load amps-inductive up to 25 A and full load amps-resistive up to 40 A. This contactor is ideal for applications requiring high electrical durability, including motor control, lighting, and HVAC systems, and is compatible with both DIN rail and plate mounting styles. Its fire resistance properties and high breaking capacity make it a safe and efficient choice.
Top product features:
Operates with a coil voltage of 24V AC
Features screw clamp terminals for electrical connection
The SCHNEIDER ELECTRIC - IEC Magnetic Contactor is intended for use in motor control and resistive load applications. It operates with a coil voltage of 24V AC, making it suitable for various industrial settings. The contactor features screw clamp terminals for electrical connection and has an operational depth of 3.54 inches. With a frame from the TeSys series, this product is rated for handling full load amps-inductive up to 25 A and full load amps-resistive up to 40 A.
Key Features:
- Auxiliary Contact Configuration: This feature includes both normally open (1NO) and normally closed (1NC) contacts.
- Control Circuit Voltage Limits: These limits range from drop-out AC at 0.3 to 0.6 Uc (-40 to 70°C at 50/60 Hz) to operational AC at varying levels depending on temperature conditions.
- Electrical Durability: The contactor has a specified electrical durability with cycles ranging from 1.4 Mcycles (at less than 440 V in AC-1 mode) to as high as 1.65 Mcycles (at less than or equal to the same voltage in AC-3 mode).
- Horsepower Ratings: Horsepower ratings may vary based on phase and voltage, including two horsepower (@ single phase -120VAC), three horsepower (@ single phase -240VAC), five horsepower (@ three-phase -208VAC), seven-and-a-half horsepower (@ three-phase -240VAC), fifteen horsepower (@ three-phase -480VAC), and twenty horsepower (@ three-phase –600 VAC).
- Maximum Operating Temperature & Minimum Operating Temperature: The device is designed for operation within the specified temperature range of minus forty degrees Fahrenheit to one hundred forty degrees Fahrenheit.
-Mounting Style: This magnetic contactor is compatible with both DIN rail mounting style and plate mounting style.
-Rated Breaking Capacity: The manufacturer rates the breaking capacity of the contactor at 450A at 440V.
-Resistance Properties: This product features fire resistance properties along with insulation resistance according to manufacturer specifications.
