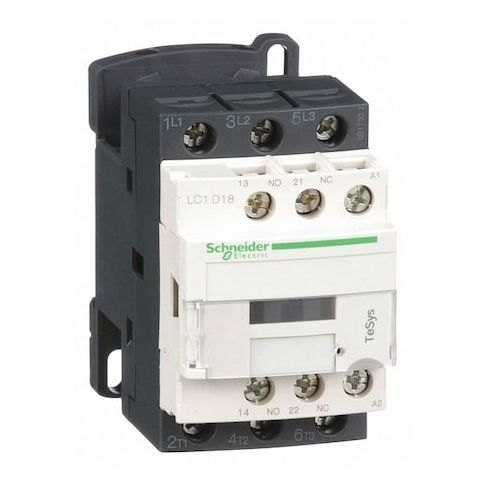

IEC Magnetic Contactor, 1NC/1NO, 24V AC, 3 P, Non-Reversing, Screw Clamp MPN:LC1D18B7

• The IEC Magnetic Contactor is a 3-pole, non-reversing power switching device in the TeSys Deca family. It is rated for operation with the specified coil voltage and contact configurations. The unit uses IEC standards for construction and features screw-clamp terminals with mounting options for DIN rail or plate.

  Key features

• - Action: Non-Reversing
• - Coil Voltage: 24 V AC
• - Poles: 3
• - Auxiliary Contacts: 2 (1NO/1NC)
• - Main Contacts: 3 normally open
• - Frame/Series: TeSys Deca
• - Voltage rating: rated for use up to 690 V AC within specified conditions
• - Phase: Three
• - Frequency: 50/60 Hz
• - Full Load Amps: rated for currents up to 18 A (Inductive) and 32 A (Resistive) under specified conditions
• - Rated Making Capacity: rated for making capacity within the specified parameters
• - IP Rating: IP20
• - Enclosure: No Enclosure
• - Mounting: DIN Rail, Plate (Mounts On: Plate, Rail)
• - Dimensions: Depth 3.38 in
• Overall Depth 3.39 in
• Height 3.03 in
• Width 1.77 in
• - Net Weight: 0.33 kg
• - Impulse Withstand Voltage: tested to withstand impulse voltages up to this level as per standards
• actual performance may vary in application
• - Shock Resistance: tested shock resistance levels according to standards
• actual resilience depends on installation conditions
• - Overvoltage Category: CAT III
• - Terminal Connection: Screw Clamp
• - Tightening Torque: 1.7 Nm
• - Embedded Surge Suppressor: No
• - Protective Cover: Yes
• - Includes Auxiliary Contacts: Yes
• - Standards: BV, CCC, CSA, CSA C22.2 No 14, DNV, EN 60947-4-1, EN 60947-5-1, GL, GOST, IEC 60335-1, IEC 60947-4-1, IEC 60947-5-1, LROS, RINA, UKCA, UL 508, UL Listed
