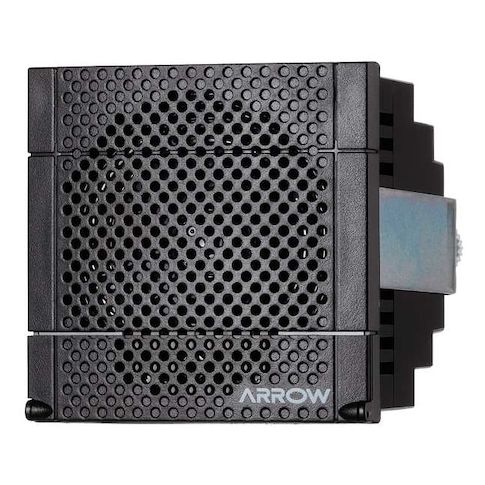

Electronic Alarm, Alarm, Continuous, 12 to 24V DC, 0 to 105dB, ABS Plastic, Black, Surface Mount MPN:XVS72BMBP
Free Shipping
In Stock
This electronic alarm is a versatile and reliable solution for a variety of applications, including industrial, commercial, and residential use. Its continuous sound pattern can be heard up to 105dB, ensuring clear notification of potential issues. Durable and weather-resistant, it can be mounted indoors or outdoors, making it suitable for a range of environments. The alarm's compact size and easy installation make it an ideal choice for applications where space is limited. With its high-quality construction and reliable performance, this electronic alarm is a valuable addition to any system, providing peace of mind and enhanced safety.
Top product features:
- It produces a continuous sound
- It operates within a temperature range of 14 Degrees to 122 Degrees F
- It is rated IP 54
Top product applications:
- Industrial Security Systems
- Security and Access Control Systems
- Emergency Response Systems
SCHNEIDER ELECTRIC XVS72BMBP is a surface-mount electronic alarm for indoor audible signaling. It is rated for 12 to 24V DC and provides a continuous tone with selectable volume, with sound output listed at 0 to 105 dB. This black alarm is part of the Harmony XVS range and is intended for direct-wired indoor audible signaling applications without a visual indicator.
Key Features:
- Audible alarm type: Alarm with continuous sound pattern and tone-style output.
- Sound options: 16 sound patterns with rotary dials for volume control and sound selection.
- Volume range: 0 to 105 dB
- maximum alarm volume at 1 m: 90 dB.
- Electrical rating: 12 to 24V DC operating voltage, 6.7 W, with operating current of 0.117 A @ 12V, 0.125 A @ 24V, 0.158 A @ 12V, and 0.200 A @ 24V.
- Construction: ABS housing with polycarbonate terminal cover
- black finish.
- Mounting and connection: Surface mount with wire leads and direct-wire control protocol.
- Ingress rating: IP54.
- Operating temperature: -10°C to 50°C (14°F to 122°F).
- Visual indicator: None
- vibration: None.
- Dimensions: 4 in. H x 3.5 in. W x 2.8281 in. D.
- Standards: EN/IEC 61000-6-2, EN/IEC 61000-6-3, UL 464, UR.
Additional Information
- Country of Origin: ID
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 3.80
- Package Width: 3.70
- Package Height: 4.20
- Package Weight: 0.60
