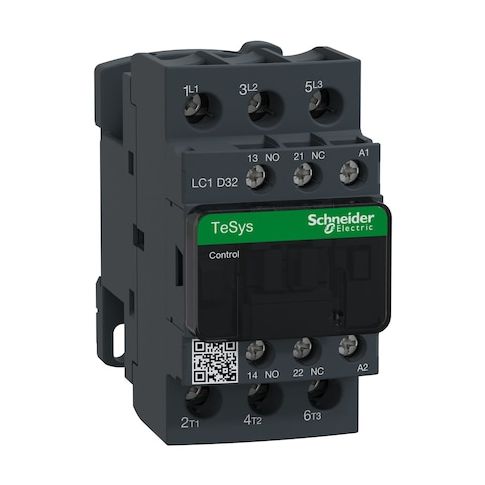

IEC Magnetic Contactor, 1NC/1NO, 120V AC, 3 P, Non-Reversing, Screw Clamp MPN:LC1D32G7

• The IEC Magnetic Contactor is a 3-pole, rated for switching power circuits within specified load parameters in IEC-based control systems. It uses a 120 V AC coil and screw clamp terminals, with auxiliary contacts configured as 1NO/1NC (2 total). Suitable for DIN rail or plate mounting

• shipped without an enclosure (IP20). It belongs to the TeSys Deca series and includes a protective cover (not intended as safety certification).

  Key features

• - Coil voltage: 120 V AC
• - Poles/phase: 3 poles
• Three-phase
• - Auxiliary contacts: 2 total (1NO/1NC)
• - Main contacts: 3 normally open
• - Reversing: Rated for non-reversing operation within specified functions
• - Electrical connection: Screw Clamp Terminals
• - Mounting: DIN Rail, Plate
• - Enclosure/IP: No Enclosure
• IP20
• - Frame/Series: TeSys Deca
• - Rated voltage / insulation: 690 V AC
• Insulation 600/690 V
• - Full load currents: 32 A (Inductive)
• 50 A (Resistive) | rated for full load currents up to 32 A inductive / 50 A resistive under specified conditions
• - Maximum making capacity: 550 A @ 440 V (Power Circuit)
• 140 A (AC Signalling)
• 250 A (DC Signalling) | rated maximum making capacity of up to 550 A at 440 V in power circuit applications
• capacities may vary based on actual operating conditions
• - Frequency: 50/60 Hz
• - Dimensions: Depth 3.62 in
• Height 3.35 in
• Width 1.77 in
• - Net weight: 0.375 kg
• - Operating times: Closing 12–22 ms
• Opening 4–19 ms | typical operating times observed under test conditions, not guaranteed during all use cases
• - Coil hold VA: 7.5 VA @ 60 Hz
• 7 VA @ 50 Hz | coil consumption ratings at specified frequencies, subject to actual application conditions
• - Impulse withstand voltage: 6 kV | tested impulse withstand voltage of up to approximately 6 kV, but performance may vary with application specifics
• - Shock resistance: 8 G (Open)
• 15 G (Closed) | shock resistance levels measured under specific test standards
• actual resilience depends on installation and environment
• - Operating temperature: Maximum operating temperature 140°F | rated for operation within the specified temperature range, actual performance may vary based on environmental factors
• - Environmental attributes: Mercury Free, PVC Free, Toxic Heavy Metal Free, Pollution Degree 3
• - Includes protective cover: Yes -> Includes a protective cover (not intended as safety certification): Yes
• - Embedded surge suppressor: No
