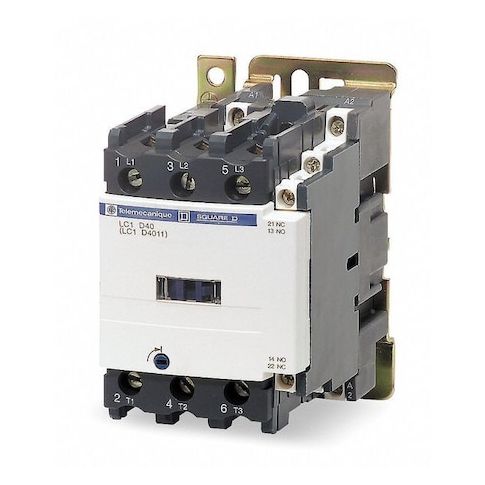

IEC Magnetic Contactor, 1NC/1NO, 480V AC, 3 P, Non-Reversing, Screw Clamp MPN:LC1D50AT7

• Schneider Electric’s IEC Magnetic Contactor is a 3-pole, non-reversing, coil-driven switching device (IEC style) rated for controlling motor and resistive load circuits within specified parameters. It features 1 normally open and 1 normally closed auxiliary contact (2 auxiliary contacts total) and 3 normally open main contacts. The unit uses Screw Clamp Terminals for the control circuit and EverLink BTR screw connectors for the power circuit. It is part of the TeSys Deca series, compatible with DIN Rail or Plate mounting configurations

• enclosure not included, and is rated for operation at 50/60 Hz within the specified voltage range up to 690V AC.

  Key features

• - non-reversing action (no guarantee of specific operational behavior)
• - Poles/Main Contacts: 3 poles, 3 normally open main contacts
• - Auxiliary Contacts: 2 total (1NO/1NC)
• - Coil Voltage: 480 V AC
• Hold VA: 13 VA
• - Frequency: 50/60 Hz
• - Maximum Voltage Rating: 690V AC
• - Full Load Amps: rated for full load currents up to these values under specified conditions
• - Series: TeSys Deca
• - Enclosure: No Enclosure
• IP20
• - Mounting: DIN Rail, Plate
• Mounts On: Plate, Rail
• - Dimensions: 4.72 in depth × 4.8 in height × 2.17 in width
• - Weight: 0.855 kg
• - Operating Times: typical operating times based on testing conditions, not guaranteed performance durations
• - Durability: expected durability based on testing standards, actual lifespan may vary
• - Short-Time Withstand: capable of handling short-duration current surges up to specified ratings under test conditions
• - Protection/Extras: Embedded Surge Suppressor: No
• Protective Cover: Yes
• Includes Everlink Power Connections
• - Fusing: 10 A (Signalling), 100 A (Type 1 Power Circuit), 100 A (Type 2 Power Circuit)
• - Standards/ Certifications: EN 60947-4-1, EN 60947-5-1, UL 508, UL Listed, and others
