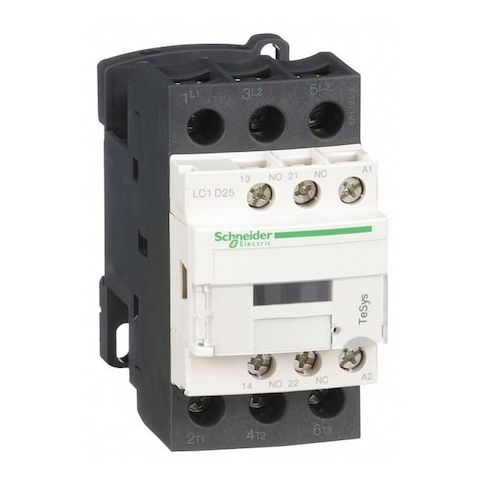

IEC Magnetic Contactor, 1NC/1NO, 24V AC, 3 P, Non-Reversing, Screw Clamp MPN:LC1D25B7
Free Shipping
In Stock
The Schneider Electric IEC Magnetic Contactor is a reliable and efficient switching device designed for motor control and resistive load applications. With its 24V AC coil and 1NO/1NC auxiliary contacts, it provides a simple and safe way to control electrical circuits. The non-reversing action ensures consistent and predictable operation, while the screw clamp terminals provide secure connections. Suitable for use in a variety of industries, including manufacturing, HVAC, and food processing, this contactor is a versatile solution for applications requiring reliable and efficient electrical switching. Its compact design and durable construction make it a valuable addition to any electrical system.
Top product features:
- Three-pole switching capability
- Non-reversing action
- 1NO/1NC auxiliary contacts for additional control and monitoring functionality
Top product applications:
- Motor Control
- Resistive Load
- TeSys Deca
The Schneider Electric IEC Magnetic Contactor is a three-pole, non-reversing, electrically operated switching device rated for operation within the specified IEC standards. It uses a 24 V AC coil and features 1NO/1NC auxiliary contacts, with screw clamp terminals. Part of the TeSys Deca line, it is rated for use with motor control and resistive loads within specified parameters.
Key features
- - Type/Series: IEC Magnetic Contactor, TeSys Deca
- - Poles/Contacts: 3 main poles
- 3 normally open main contacts
- 2 auxiliary contacts (1NO/1NC)
- - Coil: 24 V AC
- - Action: Non-Reversing
- - Applications: Motor Control, Resistive Load
- - Electrical ratings: Max voltage 690 V AC
- Rated insulation 600/690 V
- Frequency 50/60 Hz
- - Connection/Enclosure: Screw Clamp Terminals
- IP20
- No Enclosure
- - Mounting: DIN Rail, Plate (Mounts on Plate, Rail)
- - Standards: UL 508, UL Listed, EN 60947-4-1, EN 60947-5-1
- - Series: TeSys
- - Dimensions/Weight: Depth 3.62 in
- Height 3.35 in
- Width 1.77 in
- Net weight 0.37 kg
- - Durability: Electrical 1.4–1.65 million cycles
- Mechanical 15 million cycles
- - Timing: Non-overlap time 1.5 ms
- - Inclusions: Includes Auxiliary Contacts
- Includes Protective Cover
- - Phase: Three
Additional Information
- Country of Origin: ID
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 3.60
- Package Width: 4.00
- Package Height: 2.30
- Package Weight: 0.90
