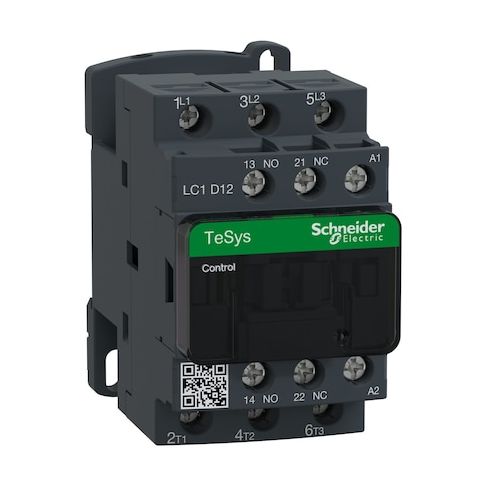

IEC Magnetic Contactor, 1NC/1NO, 120V AC, 3 P, Non-Reversing, Screw Clamp MPN:LC1D12G7
Free Shipping
In Stock
The Schneider Electric IEC Magnetic Contactor is a reliable and efficient solution for controlling and protecting electrical circuits in various applications. Its non-reversing action and 3-pole design make it suitable for motor control and resistive load circuits. The product features 1 normally open and 1 normally closed auxiliary contact, and is rated for operation up to 690 V AC / DC. Ideal for use in industrial, commercial, and residential settings, this contactor provides a safe and reliable way to manage electrical power. Its compact design and easy installation make it a popular choice among electrical professionals.
Top product features:
- It operates as a three-pole, non-reversing, electrically operated switch.
- It features 1 normally open and 1 normally closed auxiliary contact.
- It has a screw clamp terminal connection.
Top product applications:
- Motor control applications
- Resistive load circuit applications
- AC and DC power distribution systems
The product is a Schneider Electric IEC Magnetic Contactor (TeSys Deca), a three-pole, non-reversing, electrically operated switch. It uses a 120 V AC coil and features 1 normally open and 1 normally closed auxiliary contact (2 auxiliary contacts total). Rated for operation within specified motor control and resistive load circuit parameters, uses screw clamp terminals, and is rated up to 690 V AC / DC within specified conditions at 50/60 Hz. Has an IP20 enclosure rating
- a protective cover is included.
Key features
- - Type/series: IEC Magnetic Contactor, TeSys Deca
- - Action: Non-Reversing
- - Poles and main contacts: 3 poles
- 3 NO main contacts
- - Auxiliary contacts: 2 total (1NO/1NC)
- Form: 1NC/1NO
- - Coil voltage: 120 V AC
- - Electrical connections: Screw Clamp Terminals
- - Enclosure/Protection: IP20
- Protective Cover Included
- - Mounting: DIN Rail, Plate
- Mounts On Plate, Rail
- - Dimensions and weight: Depth 3.38 in
- Height 3.03 in
- Width 1.77 in
- Net weight 0.325 kg
- - Electrical rating: Rated for operation up to 690 V AC / DC within specified conditions
- Frequency 50/60 Hz
- Phase Three
- - Load capability: Supports loads up to the specified current ratings under normal operating conditions
- Rated Making Capacity 250 A @ 440 V (Power Circuit), 140 A (AC Signalling), 250 A (DC Signalling)
- - Operating characteristics: Typical operating times based on standard testing procedures
- - Other electrical data: Inrush 70 VA
- Hold 7.5 VA
- Insulation resistance >10 MΩ (Signalling Circuit)
Additional Information
- Country of Origin: ID
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 3.10
- Package Width: 1.80
- Package Height: 3.50
- Package Weight: 0.80
