Socket, General Purpose Relay, Octal, 10 A, 8 Pins, Pin MPN:8501KPR12V20
Free Shipping
In Stock

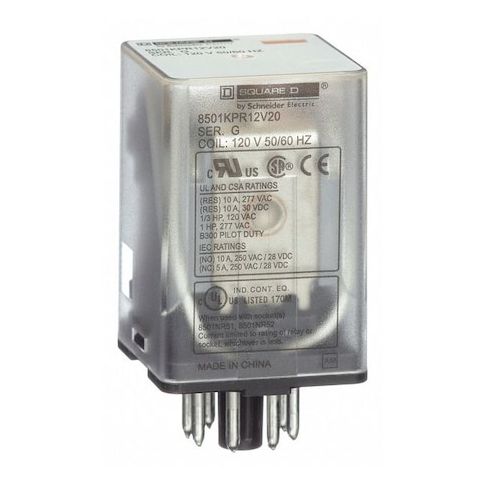

The 8501KP universal plug in relay is designed for multipole switching applications at 300 VAC or lower. Easy to replace due to its plug-in design, this relay is compatible with 851NR51 or 8501NR52 sockets. With a DPDT contact arrangement and 10 ampere rating, it's suitable for a variety of applications, including lighting, HVAC, and industrial control systems. The relay also features a 120 VAC nonreplaceable coil and meets UL and CSA certifications, making it a reliable choice for a range of industries. Its compact design and versatility make it an ideal solution for a variety of applications.
Top product features:
- Plugs into a relay socket for easy replacement
- Has a DPDT contact arrangement with two normally open and two normally closed contacts
- Has a 10 ampere rating at 277 VAC and a 10 ampere rating at 28 VDC
Top product applications:
- Multipole switching applications at 300 VAC or lower
- Industrial control systems for 120 VAC and 277 VAC applications
- High-power switching applications such as 1/3 HP and 1 HP ratings at 120 VAC and 277 VAC
8501KP universal plug in relays are designed for multipole switching applications at 300 VAC or lower. These relays are designed to be plugged into a relay socket. This makes for very easy replacement. This relay plugs into an 851NR51 or 8501NR52 relay socket. This relay has a DPDT contact arrangements. It has two normally open and two normally closed contacts. The contacts have a 10 ampere rating 277 VAC, a 10 ampere rating at 28 VDC, a 1/3 HP rating at 120 VAC, a 1 HP rating at 277 VAC and a B300 inductive rating. Relays can be ordered with a wide variety of coil voltages. This relay has a 120 VAC nonreplaceable coil. A green LED indicator is not supplied on this relay. 8501KP relays are UL listed with Square D relay sockets, UL component recognized and CSA certified.
Additional Information
- Country of Origin: CN
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 1.40
- Package Width: 1.50
- Package Height: 2.70
- Package Weight: 0.20
