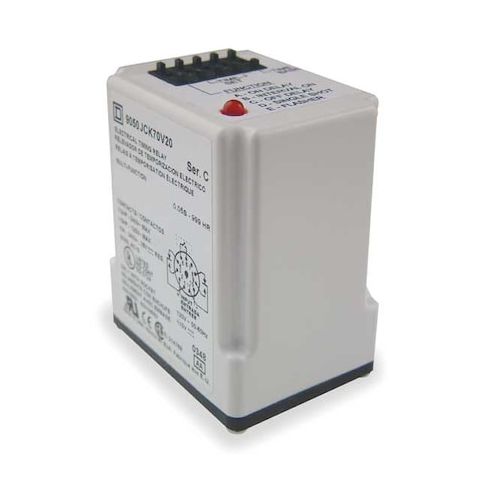

Multifunction Time Delay Relay, Octal, 8 Functions 24V AC, DPDT MPN:9050JCK70V14
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G1584177
Multifunction Time Delay Relay, Octal, 8 Functions 24V AC, DPDT
The Schneider Multifunction Time Delay Relay is a versatile device that simplifies complex timing sequences with 8 customizable delay functions. Its octal base shape and dip switch adjustment make it easy to integrate into a variety of applications. Perfect for use in industrial automation, process control, and building management systems, this relay provides reliable on/off control, one-shot triggering, and repeat cycle functionality. With a 24V AC coil voltage and 10A contact rating, it can handle demanding tasks with precision and accuracy. Its compact size and low power consumption make it an ideal choice for space-constrained installations.
Top product features:
- Adjustment Method: Dip Switch
- Has 8 Delay Functions
- DPDT Contact Form
Top product applications:
- Automotive Lighting Systems
- Industrial Automation Control Panels
- Machine Tool Control Systems
Multi-Function Time Delay Relay, Adjustment Method Dip Switch, Base Shape Octal, Coil Voltage 24V AC, Contact Form DPDT, Contact Rating (AC) 10 A @ 120/240V, Contact Rating (DC) 10 A @ 30V, Current Rating 10 A, Number of Delay Functions 8, Delay Function Interval, On Delay, On/Off Delay, One Shot, One Shot (Falling Edge), Repeat Cycle, Trigger On Delay Off Delay, Watchdog, Electrical Connection Socket, Flat Pin Width Not Applicable, Input Voltage 24V AC, Minimum Time Setting 0.5 sec
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 4.70
- Package Width: 3.00
- Package Height: 2.20
- Package Weight: 0.40
Product info last updated on February 19, 2026 3:35am UTC
Category: Industrial Electrical Controls and Automation
