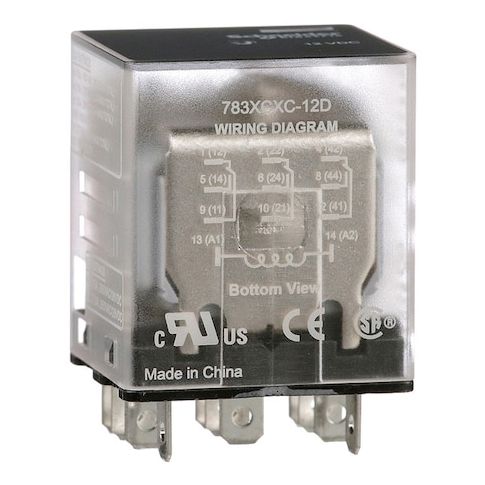

Socket, General Purpose Relay, Square, 15 A, 11 Pins, Faston Connector MPN:783XCXC-12D
Socket, General Purpose Relay, Square, 15 A, 11 Pins, Faston Connector
The Schneider General Purpose Relay is a versatile and reliable switching device ideal for a wide range of applications, including industrial control systems, machine automation, and power distribution. With a high current rating of 15A and a compact square design, it can handle demanding tasks while saving space. The relay's 11-pin Faston connector and push-to-test method ensure easy installation and maintenance. Suitable for use in various voltage ranges, including 12V DC and 120-277V AC, this relay is perfect for applications requiring high power switching, such as motor control and lighting systems.
Top product features:
- Square base shape allows for easy mounting and installation.
- Faston terminals enable secure and reliable electrical connections.
- Three-pole double-throw (3PDT) contact form provides versatile switching capabilities.
Top product applications:
- Industrial Automation Systems
- Automotive Electrical Systems
- Power Distribution Panels
General Purpose Relay, Base Shape Square, Coil Voltage 12V DC, Contact Form 3PDT, Current Rating 15 A, Electrical Connection Faston Terminal, Flat Pin Width 0.187 in, Number of Pins 11, Status Indicator Mechanical Flag, Contact Rating (AC) 10 A @ 151/277V, 15 A @ 120 to 277/120/150/250V, 7.55 A @ 250V (NC), Contact Rating (DC) 15 A @ 28V (NO), 7.55 A @ 28V (NC), Horsepower @ 120V AC 1/2 hp, Horsepower @ 240V AC 3/4 hp, Mounting Style Socket, Push-To-Test Method Lockable, Body Depth 1.37 in
Additional Information
- Country of Origin: CN
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 3.00
- Package Width: 2.80
- Package Height: 1.50
- Package Weight: 0.13
Product info last updated on March 3, 2026 11:41pm UTC
Category: Industrial Electrical Controls and Automation
