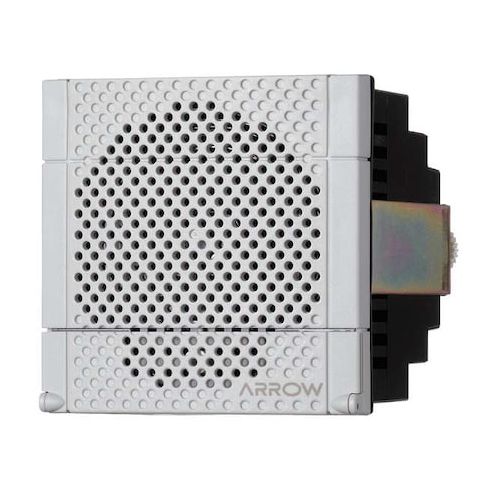

Electronic Alarm, Alarm, Continuous, 12 to 24V DC, 0 to 105dB, ABS Plastic, White, Surface Mount MPN:XVS72BMWP

• SCHNEIDER ELECTRIC XVS72BMWP is a surface-mount electronic alarm for indoor audible signaling. Rated voltage: 12 to 24V DC. Audible alarm with continuous tone output and selectable volume control

• sound level specifications are listed below. The unit includes 4 channels and 16 sound patterns
• dimensions are 4 in H x 3.5 in W x 2.7344 in D.

  Key Features:

  • Audible alarm type: Alarm with continuous tone output
  • Sound level: 0 to 105 dB with selectable volume control
  • maximum 90 dB at 1 m
  • Voltage: 12 to 24V DC
  • Operating current: 0.117 A @ 12V, 0.125 A @ 24V, 0.158 A @ 12V, 0.200 A @ 24V
  • Power rating: 6.7 W
  • Sound options: 16 sound patterns and 4 channels
  • Connection and control: Wire leads with direct-wire control protocol
  • Construction: ABS plastic housing with polycarbonate terminal cover
  • white finish
  • Mounting: Surface mount
  • Ingress protection: IP54
  • Operating temperature: -10°C to 50°C (14°F to 122°F)
  • Includes: 4 inputs, rotary dials for volume control and tone selection
  • Standards: EN/IEC 61000-6-2, EN/IEC 61000-6-3, UL 464, UR
  • Dimensions: 4 in H x 3.5 in W x 2.7344 in D
