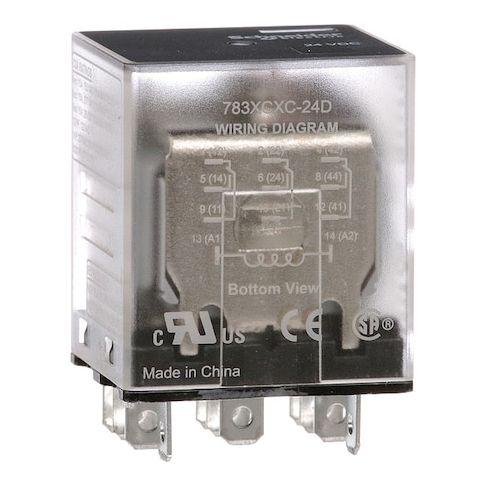

Socket, General Purpose Relay, Square, 15 A, 11 Pins, Faston Connector MPN:783XCXC-24D
Socket, General Purpose Relay, Square, 15 A, 11 Pins, Faston Connector
The Schneider General Purpose Relay is a versatile and reliable component ideal for a wide range of applications, including industrial automation, control systems, and electrical panels. Its 15A current rating and faston terminal connection make it suitable for high-demand applications, while the 24V DC coil voltage ensures efficient operation. The relay's 3PDT contact form and mechanical flag status indicator provide clear and precise control. With a compact square shape and push-to-test method, this relay is perfect for use in tight spaces, such as in machine control panels or as a replacement part in existing systems.
Top product features:
- Coil Voltage 24V DC
- Contact Form 3PDT
- Status Indicator Mechanical Flag
Top product applications:
- Motor Control
- Machine Automation
- Industrial Automation Systems
General Purpose Relay, Base Shape Square, Coil Voltage 24V DC, Contact Form 3PDT, Current Rating 15 A, Electrical Connection Faston Terminal, Flat Pin Width 0.187 in, Number of Pins 11, Status Indicator Mechanical Flag, Contact Rating (AC) 10 A @ 151/277V, 15 A @ 120 to 277/120/150/250V, 7.55 A @ 250V (NC), Contact Rating (DC) 15 A @ 28V (NO), 7.55 A @ 28V (NC), Horsepower @ 120V AC 1/2 hp, Horsepower @ 240V AC 3/4 hp, Mounting Style Socket, Push-To-Test Method Lockable, Body Depth 1.37 in
Additional Information
- Country of Origin: CN
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 3.20
- Package Width: 2.80
- Package Height: 1.50
- Package Weight: 0.15
