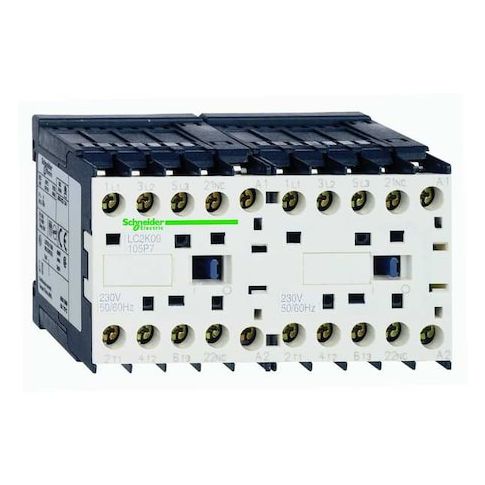

IEC Miniature Magnetic Contactor, 1NC, 24V AC, 3 P, Reversing, Screw Clamp MPN:LC2K0901B7
Free Shipping
In Stock
The Schneider Electric IEC Miniature Magnetic Contactor is a versatile and reliable device designed for motor control and resistive load applications. Its ability to reverse action makes it suitable for various industrial uses, including control systems. With a 24V AC coil voltage and 1NC auxiliary contact configuration, this contactor offers flexibility and precision. Rated for operation in a wide temperature range, it ensures reliable performance in harsh environments. The screw clamp terminals allow for easy connection to various cable types, making it a convenient choice for industrial applications, including control systems, manufacturing, and automation.
Top product features:
- The product reverses its action for various industrial applications.
- The device operates within specified ambient air temperature ranges.
- The product features instantaneous NC (Normally Closed) auxiliary contacts.
Top product applications:
- Control
- Motor control
- Resistive load applications
The SCHNEIDER ELECTRIC - IEC Miniature Magnetic Contactor is a contactor with the ability to reverse its action for various industrial applications. It's designed for motor control and resistive load applications, operating with a coil voltage of 24V AC and featuring an auxiliary contact configuration of 1NC (Normally Closed). The device is rated for operation within specified ambient air temperature ranges: from -13 to 122°F (-25 to 50°C) during operation, and -58 to 176°F (-50 to 80°C) when stored. Its screw clamp terminals are compatible with certain cable types, offering flexibility in terms of cable compatibility. This product belongs to the TeSys series and complies with several recognized international standards including BS 5424, CSA, IEC 60947, NF C 63-110, UKCA, UL Listed, VDE 0660.
Key Features:
- - Action may be reversed for various industrial applications
- - Rated for operation within specified ambient air temperature ranges
- - Auxiliary Contacts Type: Instantaneous NC (Normally Closed)
- - Screw clamp terminals compatible with certain cable types
- - Complies with several recognized international standards
- - Rated insulation voltage: Power circuit at both 600 V UL508 &690 V IEC60947-4-1
- Signalling circuit at both690 V IEC60947-5-1 &600 V UL508.
- - Device application: Control
- - Maximum operating rate:3600 cyc/h
- - Mounting style:DIN Rail or Plate.
Additional Information
- Country of Origin: FR
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 3.70
- Package Width: 2.40
- Package Height: 2.50
- Package Weight: 0.80
