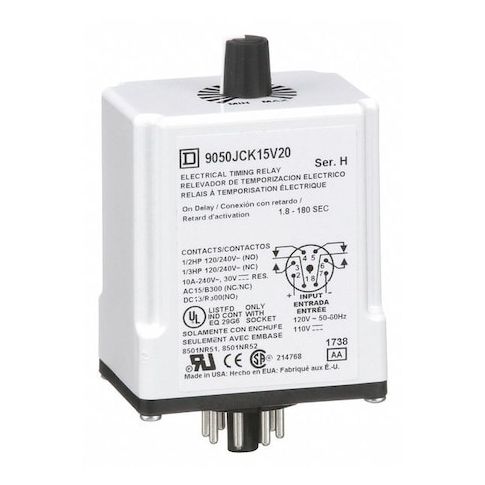

Single Function Time Delay Relay, Octal, On Delay, 1 Functions 110V AC, DPDT MPN:9050JCK15V20
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G1249227
Single Function Time Delay Relay, Octal, On Delay, 1 Functions 110V AC, DPDT
This Single Function Time Delay Relay from Schneider is a reliable and versatile solution for various applications requiring precise timing control. With its compact octal design and DPDT configuration, it can be easily integrated into a wide range of systems. The on-delay function allows for controlled activation of devices, while the rotary knob adjustment ensures precise timing settings. Suitable for use in industrial automation, HVAC, and lighting control systems, this relay offers a cost-effective and efficient way to manage time-sensitive operations. Its compact size and sealed design make it a great choice for space-constrained applications.
Top product features:
- Adjustment Method Rotary Knob
- Contact Form DPDT
- On Delay Function
Top product applications:
- Industrial Automation: The time delay relay can be used to control the timing of machinery startup and shutdown in industrial automation systems.
- Home Appliances: The on-delay function can be used in home appliances such as air conditioners and refrigerators to delay the start of the compressor until the desired temperature is reached.
- Automotive Systems: The relay can be used in automotive systems to control the timing of accessories such as headlights and windshield wipers, ensuring they turn on and off at the correct times.
Single Function Time Delay Relay, Adjustment Method Rotary Knob, Base Shape Octal, Coil Voltage 110V AC, Contact Form DPDT, Contact Rating (AC) 10 A @ 120/240V, Contact Rating (DC) 10 A @ 30V, Current Rating 10 A, Number of Delay Functions 1, Delay Function On Delay, Electrical Connection Socket, Flat Pin Width Not Applicable, Input Voltage 110V AC, 120V DC, Minimum Time Setting 1.8 sec, Maximum Time Setting 3 min, Number of Pins 8, Sealing Sealed, Mounting Style Plug-In, Body Depth 2.75 in
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 2.60
- Package Width: 2.00
- Package Height: 4.20
- Package Weight: 0.25
Product info last updated on March 21, 2026 9:12pm UTC
Category: Industrial Electrical Controls and Automation
