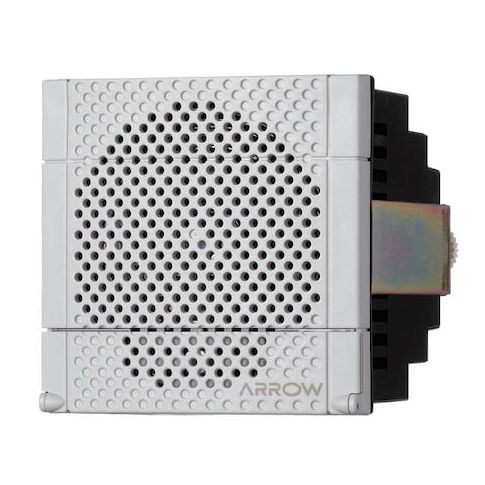

Electronic Alarm, Alarm, Continuous, 12 to 24V AC/DC, 0 to 105dB, ABS Plastic, White, Surface Mount MPN:XVS72BMWN

• SCHNEIDER ELECTRIC XVS72BMWN is an electronic alarm for audible signaling in indoor installations. Designed as an accessory for custom assembly, it features continuous tone output with selectable volume and is rated for 12 to 24V AC/DC. The unit uses direct wire control with wire lead connections and mounts to a surface.

  Key Features:

  • Audible alarm type: Continuous tone output.
  • Sound level: 0 to 105 dB, with 90 dB maximum at 1 m.
  • Sound options: 16 selectable sound patterns with rotary dials for volume control and tone selection.
  • Voltage: 12 to 24V AC/DC.
  • Operating current: 0.117 A at 12V, 0.125 A at 24V, 0.158 A at 12V, 0.200 A at 24V.
  • Power rating: 6.7 W.
  • Construction: ABS plastic housing with polycarbonate terminal cover
  • white finish.
  • Mounting: Surface mount.
  • Protection ratings: IP54 and Class II.
  • Operating temperature: 14 to 122 degrees F (-10 to 50 degrees C).
  • Dimensions: 4 in. H x 3.5 in. W x 2.7188 in. D.
  • Visual indicator: None.
  • Vibration: None.
  • Standards: EN/IEC 61000-6-2, EN/IEC 61000-6-3, UL 464, UR.
