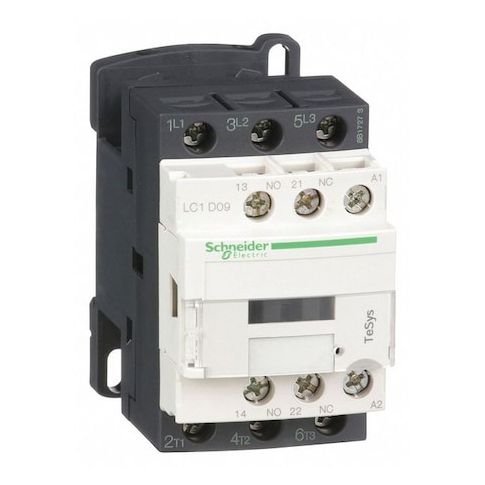

IEC Magnetic Contactor, 1NC/1NO, 240V AC, 3 P, Non-Reversing, Screw Clamp MPN:LC1D09U7

• The Schneider Electric IEC Magnetic Contactor is a 3-pole, non-reversing, electrically operated switch rated for operation within IEC standards. It operates with a 240 V AC coil as specified to open or close contacts and includes 1 NO/1 NC auxiliary contacts and 3 normally open main contacts. The device features screw clamp terminals, a protective cover, and does not include surge suppression features

• suitable for intended applications. Mounting options include DIN rail or plate, and it carries an IP20 rating. It is listed under the TeSys Deca family and is rated for use with motor control and resistive loads within specified parameters.

  - Action: Non-Reversing

• - Application: Motor Control, Resistive Load
• - Auxiliary contacts: 2 total (1NO/1NC)
• - Auxiliary contact form: 1NC/1NO
• - Coil voltage: 240 V AC
• - Contactor style/Series: IEC / TeSys Deca
• - Number of poles: 3
• - Main contacts: 3 normally open
• - Electrical connection: Screw Clamp Terminals
• - Enclosure: No Enclosure
• IP20
• Protective Cover included
• - Frequency: 50/60 Hz
• - Full Load Amps (Resistive): 20 A
• (Inductive): 9 A
• - Mounting: DIN Rail, Plate
• - Net weight: 0.32 kg
• - Dimensions (approx.): Width 1.77 in, Height 3.03 in, Depth 3.39 in
• - Rated voltage: 690 V AC, 300 V DC
• - Mechanical durability: 15 Mcycles
• - Electrical operating durability: 2,000,000
• 600,000 cycles
