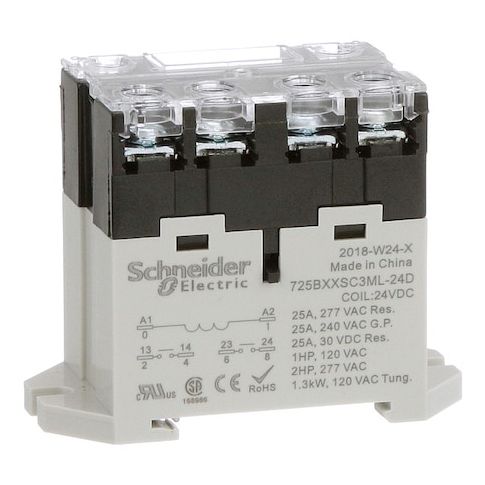

DIN Rail & Top Flange, Enclosed Power Relay, Square, 25 A, 6 Pins, Screw MPN:725BXXSC3ML-24D
DIN Rail & Top Flange, Enclosed Power Relay, Square, 25 A, 6 Pins, Screw
This Schneider enclosed power relay is a reliable and efficient solution for a wide range of applications, including industrial control systems, motor control, and HVAC systems. Its 25A current rating and 6-pin screw terminal connection make it suitable for high-power applications, while its DPST-NO contact form and LED status indicator ensure precise control and monitoring. The relay's compact design and DIN rail mounting style make it easy to integrate into existing systems, and its 1-2 horsepower rating makes it suitable for applications such as pumps, fans, and compressors. Its long lifespan and low maintenance requirements make it a cost-effective choice.
Top product features:
- Enclosed design protects internal components from environmental factors
- DPST-NO contact form allows for switching of two circuits with a single pole
- LED indicator provides visual status of the relay's operation
Top product applications:
- Industrial Control Panel
- Motor Control Circuits
- Machine Automation Systems
Enclosed Power Relay, Base Shape Square, Coil Voltage 24V DC, Contact Form DPST-NO, Current Rating 25 A, Electrical Connection Screw Terminal, Number of Pins 6, Status Indicator LED Indicator, Contact Rating (AC) 25 A @ 240/277V, Contact Rating (DC) 25 A @ 28/30V, Horsepower @ 120V AC 1 hp, Horsepower @ 240V AC 2 hp, Mounting Style DIN Rail & Top Flange, Push-To-Test Method Test Button, Body Depth 1.64 in, Body Height 1.3 in, Body Width 2.67 in, Coil Resistance 300 ohm
Additional Information
- Country of Origin: CN
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 12.50
- Package Width: 5.80
- Package Height: 2.80
- Package Weight: 2.77
Product info last updated on January 31, 2026 5:00am UTC
Category: Industrial Electrical Controls and Automation
