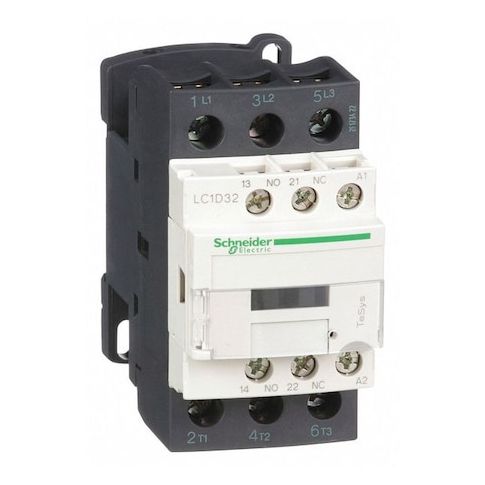

IEC Magnetic Contactor, 1NC/1NO, 24V AC, 3 P, Non-Reversing, Screw Clamp MPN:LC1D32B7
Free Shipping
In Stock
This Schneider Electric IEC Magnetic Contactor is a reliable and efficient solution for power circuit switching in motor control and resistive load applications. With its 3-pole, non-reversing coil and 24V AC operation, it provides seamless control and flexibility. The unit features 1 NO/1 NC auxiliary contacts, operated through screw clamp terminals, making it easy to integrate into your system. Ideal for use in industrial settings, this contactor offers a high level of durability and reliability, with a mechanical durability of 15 Mcycles and electrical durability of up to 1,650,000 cycles. It's perfect for applications requiring precise control and efficient power distribution.
Top product features:
- Operates at 24 V AC
- Has 3 normally open main contacts
- Includes 1 NO/1 NC auxiliary contacts operated through screw clamp terminals
Top product applications:
- Motor control applications
- Resistive load applications
- Three-phase power circuit switching
This item is a Schneider Electric IEC Magnetic Contactor with a 3-pole, non-reversing coil at 24 V AC. It provides switching for power circuits in motor control and resistive load applications, and includes 1 NO/1 NC auxiliary contacts operated through screw clamp terminals. The unit is part of the TeSys family and mounts to a DIN Rail or Plate, with no enclosure provided.
Key features
- - Coil voltage: 24 V AC
- - Action: Non-Reversing
- - Poles/Phase: 3 poles
- Three-phase
- - Auxiliary contacts: 1 NO/1 NC (includes auxiliary contacts)
- - Main contacts: 3 normally open
- - Electrical connection: Screw Clamp Terminals
- - Mounting: DIN Rail or Plate
- Mounts On: Plate, Rail
- - Enclosure/IP rating: None
- IP20
- - Series: TeSys Deca
- - Rated voltage: 690 VAC, 300 VDC
- - Load ratings: 32 A (inductive), 50 A (resistive, full load)
- - Mechanical durability: 15 Mcycles
- - Electrical durability: 1,400,000 to 1,650,000 cycles
- - Net weight: 0.375 kg
- - Dimensions: Depth 3.62 in
- Height 3.35 in
- Width 1.77 in
- - Embedded features: No surge suppressor
- Includes protective cover
- - Ambient/other: Max operating temperature 60°C (140°F)
- 50/60 Hz operation
Additional Information
- Country of Origin: ID
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 3.50
- Package Width: 4.00
- Package Height: 2.10
- Package Weight: 0.90
