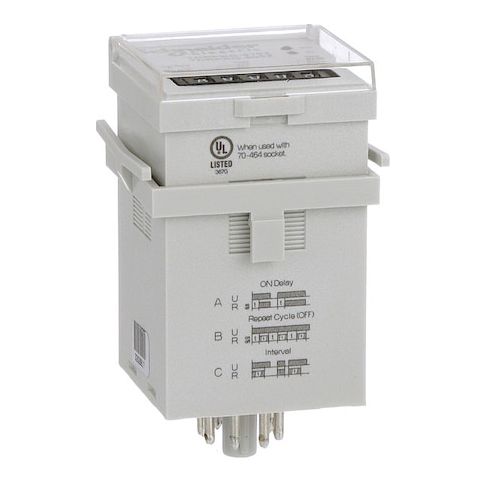

Multifunction Time Delay Relay, Octal, 3 Functions 240V AC, DPDT MPN:TDRPRO-5102
Multifunction Time Delay Relay, Octal, 3 Functions 240V AC, DPDT
The Schneider Multifunction Time Delay Relay is a versatile and reliable solution for a wide range of applications. With its octal base shape and DPDT contact form, this relay provides three delay functions, including on delay, repeat cycle, and interval delay, making it ideal for use in industrial automation, process control, and building management systems. Its adjustable thumb wheel allows for precise timing settings, and its compact design fits easily into tight spaces. With a high current rating of 12A and a wide input voltage range of 12-240V AC/DC, this relay is perfect for use in a variety of applications, including lighting control, HVAC systems, and security systems.
Top product features:
- It has three delay functions: On Delay, Repeat Cycle, and Power On Delay.
- It allows for adjustment of delay times using a thumb wheel.
- It has a DPDT contact form with a current rating of 12 A.
Top product applications:
- Industrial Automation: The multifunction time delay relay can be used to control and regulate industrial machinery, such as conveyor belts and pumps, by implementing timed delays and repeat cycles.
- Home Security Systems: The relay can be integrated into home security systems to implement timed delays and repeat cycles for features such as alarm triggers and door lock releases.
- Solar Power Systems: The relay can be used to regulate the flow of power in solar power systems, implementing timed delays and repeat cycles to optimize energy harvesting and storage.
Multi-Function Time Delay Relay, Adjustment Method Thumb Wheel, Base Shape Octal, Coil Voltage 240V AC, Contact Form DPDT, Contact Rating (AC) 12 A @ 12 to 240V, Contact Rating (DC) 12 A @ 12 to 240V, Current Rating 12 A, Number of Delay Functions 3, Delay Function Interval (Power On), On Delay (Power On), Repeat Cycle (Starting Off), Electrical Connection Socket, Flat Pin Width Not Applicable, IP Rating IP40, Input Voltage 12 to 240V AC/DC, Minimum Time Setting 0.1 sec
Additional Information
- Country of Origin: CZ
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 4.20
- Package Width: 2.40
- Package Height: 2.20
- Package Weight: 0.35
