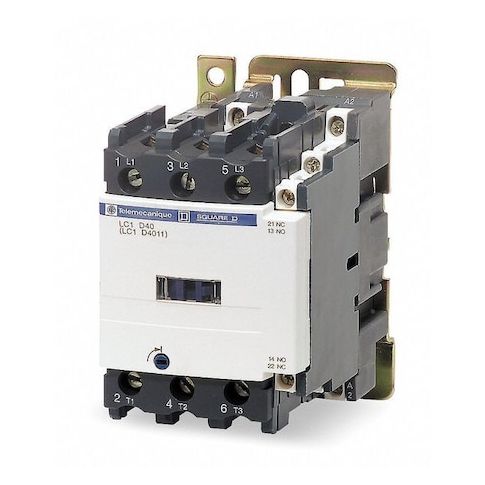

IEC Magnetic Contactor, 1NC/1NO, 480V AC, 3 P, Non-Reversing, Screw Clamp MPN:LC1D40AT7
Free Shipping
In Stock
The Schneider Electric IEC Magnetic Contactor is designed for motor control and resistive load applications, offering reliable and efficient operation within specified parameters. With a 3-pole, non-reversing configuration and 480V AC coil, this contactor is suitable for standard panel mounting configurations. Its auxiliary contacts provide additional functionality, making it ideal for a wide range of applications, including industrial automation, commercial buildings, and residential settings. The contactor's durable design and high electrical endurance ensure long-term performance, while its compact size and screw clamp terminals facilitate easy installation and maintenance.
Top product features:
- Operates within specified voltage ranges and is compliant with relevant IEC standards
- Uses an electromagnetic coil to open and close its main contacts, suitable for controlling motors, resistive loads, and similar applications within specified parameters
- Includes auxiliary contacts with 1NC/1NO configuration for additional control and monitoring capabilities
Top product applications:
- Motor control applications
- Resistive load applications
- Similar applications within specified parameters
Schneider Electric’s IEC Magnetic Contactor is rated for operation within the specified voltage ranges and compliant with relevant IEC standards. It uses an electromagnetic coil to open and close its main contacts, suitable for controlling motors, resistive loads, and similar applications within specified parameters. This 3-pole, non-reversing contactor includes a 480 V AC coil
- compatible with standard panel mounting configurations
- auxiliary contacts are included as specified.
Key features:
- - Poles: 3
- Phase: Three
- - Action: Non-Reversing
- - Coil Voltage: 480 V AC
- Rated Voltage: 690 V AC
- 300 V DC
- - Application: Intended for use in motor control and resistive load applications within rated specifications
- - Auxiliary contacts: 2 total (1 NO / 1 NC)
- Auxiliary Contact Form: 1NC/1NO
- - Main contacts: 3 normally open
- - Connection: Control Circuit: Screw Clamp Terminals
- Power Circuit: EverLink BTR Screw Connectors
- - Includes: Everlink Power Connections
- Includes Protective Cover
- Includes Auxiliary Contacts: Yes replaced with: Supplied with appropriate power connections, protective cover, and auxiliary contacts as specified
- - Series/Style: TeSys Deca
- Contactor Style: IEC
- - Enclosure: Has no enclosure
- IP rating: IP20 according to applicable standards
- - Dimensions: 2.17 in W x 4.80 in H x 4.72 in D
- - Weight: 0.85 kg
- - Frequency: 50/60 Hz
- - Electrical durability: tested for electrical endurance up to 1,400,000 and 1,500,000 cycles under standard conditions
- - Mechanical durability: rated for mechanical operation up to 6 Mcycles under normal use conditions
- - Inrush/holding: Hold VA 13
- Non-specified items omitted
- - Impulse withstand: 6 kV
- - Shock resistance: 10 G (Open), 15 G (Closed)
- - Standards: CCC, CSA, CSA C22.2 No 14, EN 60947-4-1, EN 60947-5-1, GOST, IEC 60335-1, IEC 60947-4-1, IEC 60947-5-1, UL 508, UL Listed
Additional Information
- Country of Origin: ID
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 6.00
- Package Width: 5.50
- Package Height: 2.50
- Package Weight: 2.05
