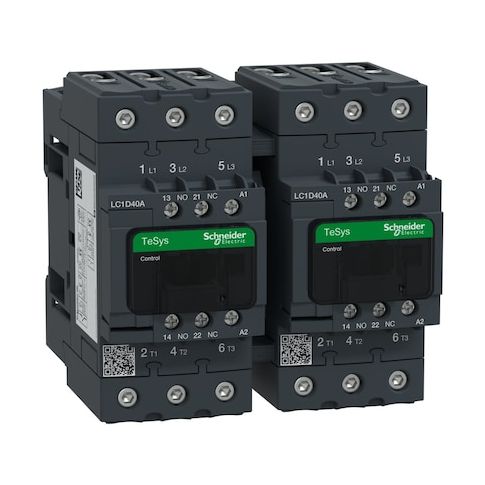

IEC Magnetic Contactor, 1NC/1NO, 110V AC, 3 P, Reversing, Screw Clamp MPN:LC2D40AF7
Free Shipping
In Stock
This Schneider Electric IEC Magnetic Contactor is a versatile and reliable solution for a wide range of applications, including industrial automation, HVAC, and power distribution. With its 3-pole reversing operation and 110V AC coil, it can control and switch high-power loads with ease. The 2 auxiliary contacts provide additional functionality, while the screw clamp terminals ensure secure and efficient connections. Suitable for use in environments with temperatures ranging from -40°F to 140°F, this contactor meets the highest standards for safety and performance, making it an ideal choice for industries that require high reliability and efficiency.
Top product features:
- Reversing operation allows for bidirectional control of devices
- 2 auxiliary contacts (1NC/1NO) provide additional control and monitoring capabilities
- Screw clamp terminals enable easy and secure connections
Top product applications:
- Industrial Automation
- Motor Control Centers
- HVAC Systems
This is a Schneider Electric IEC Magnetic Contactor (3 poles) with a 110V AC coil, reversing operation, and 2 auxiliary contacts (1NC/1NO). It uses screw clamp terminals and is part of the TeSys Deca family, rated for operation within the specified standards and ratings.
- Coil voltage: 110V AC
- - Poles: 3
- Reversing: Reversing
- - Auxiliary contacts: 2 (1NC/1NO)
- - Terminal connections: Screw Clamp
- - Mounting: DIN Rail, Plate
- - Maximum voltage rating: 690V AC
- - Frequency: 50/60 Hz
- - IP rating: IP20
- - Electrical operating durability: 1,400,000 (AC-1)
- 1,500,000 (AC-3)
- - Mechanical operating durability: 6,000,000
- - Full Load Amps: Inductive 40 A
- Resistive 60 A
- - Full Load Current: Inductive 40 A
- Resistive 60 A
- - Horsepower (by voltage & phase): 120V/3 hp
- 240V/5 hp
- 208V/10 hp
- 240V/10 hp
- 480V/30 hp
- 600V/30 hp
- - Maximum ambient temperature rating: 140 °F
- - Minimum ambient temperature rating: -40 °F
- - Standards: CSA C22.2 No 14, EN 60947-4-1, EN 60947-5-1, IEC 60335-1, IEC 60947-4-1, IEC 60947-5-1, UL 508
- - Series: TeSys Deca
- - Embedded surge suppressor: No
- - Includes auxiliary contacts: Yes
- - Item: IEC Magnetic Contactor
- - Resistance properties: Fire Resistant, Insulation Resistant
Additional Information
- Country of Origin: FR
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 7.80
- Package Width: 6.38
- Package Height: 5.51
- Package Weight: 4.56
